LM-SD500

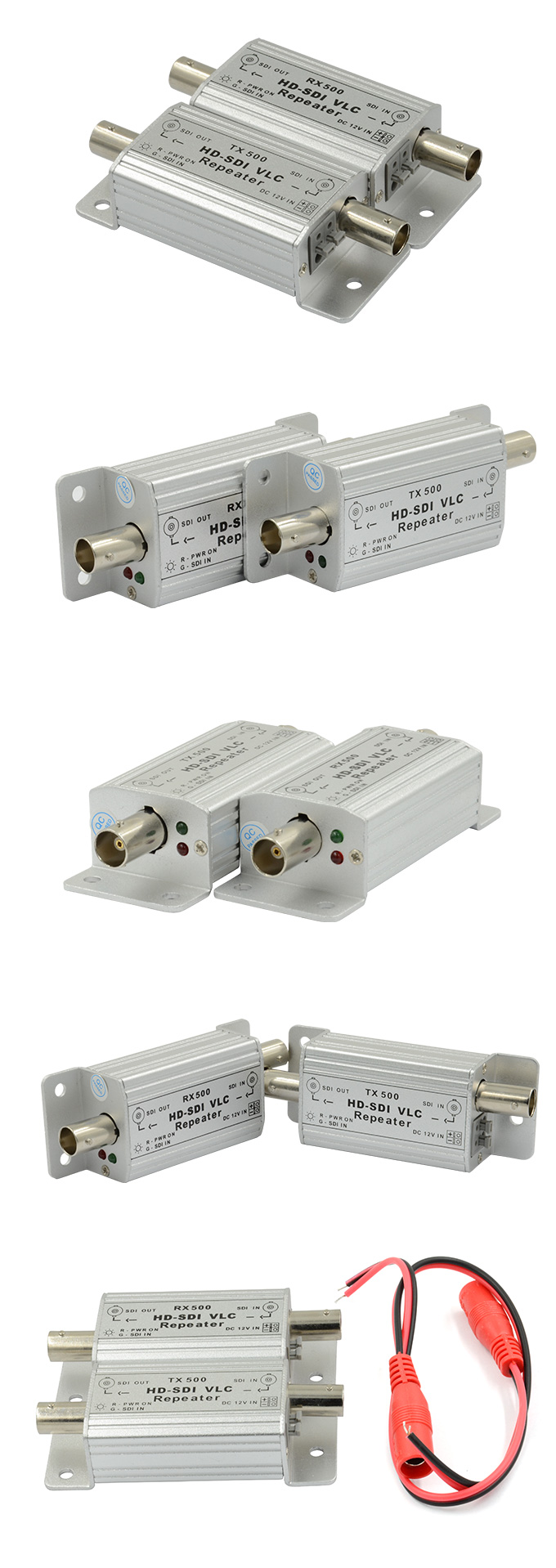

LINK-MI LM-SD500 500M Extender SDI-Repeaters (TX-RX)

Introduction:
1.Support resolution of 1280 x720 (24/25/30/50/60fps) and 1920 x1080 (24/25/30fps)
2.Support 20 bit(non-multiplexed) or 10-bit(multi-channel)data width
3.Support transmission ratio of 2.97Gbps, 1.485Gbps, 270Mbps
4.Embedded surge protection cables
5.LightAluminum Housing, Easy to carry and install

Description
