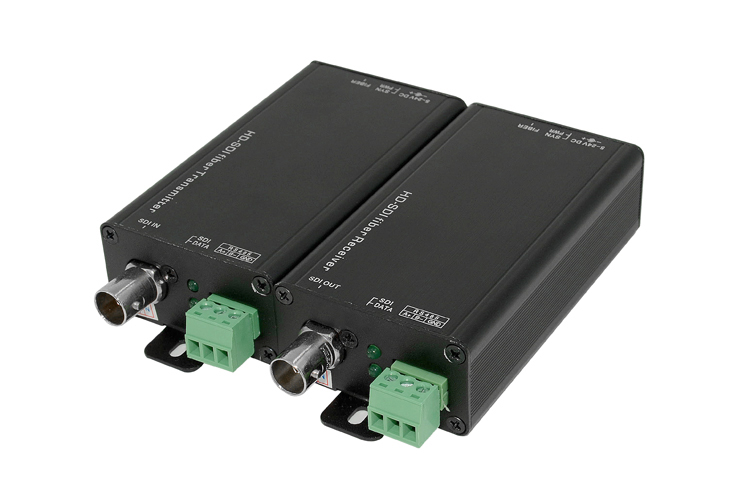

LINK-MI LM-STF5801H Mini SD/HD-SDI Fiber Optical Transmission

Introduction:

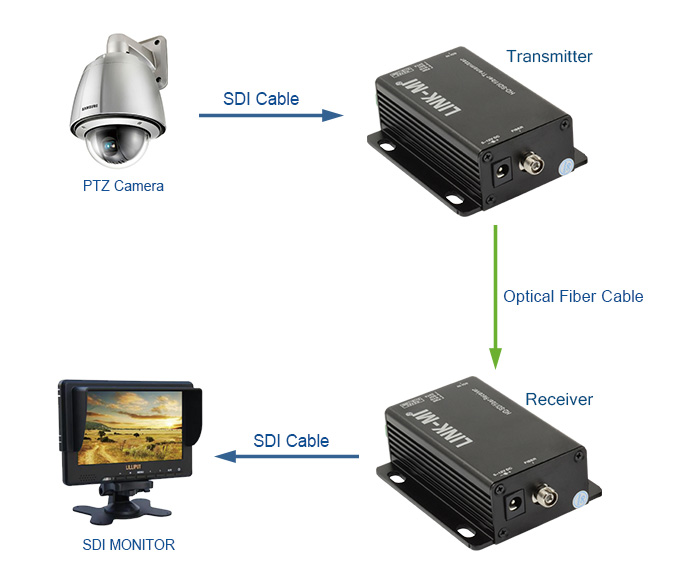

1.One way HD-SDI fiber transmission high-definition digital video and audio signals
2.SD, HD input automatic detection, support 270Mbit/s - 1.48Gbit/s rate; support the new 1080P HD-SDI format
3.Support SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signal and DVB-ASI signal
4.For reliable transmission by multi-mode or single-mode optical fiber, the single mode fiber 20KM, up to 60KM
5.The built-in cable equalizer for Equalizer, clock regeneration circuit Relocked and cable driver
6.Power and other parameters indicate LED can monitor system status
7.Signal input with automatic cable equalization function, output has a long drive function

Description

Specification

Product Model

LM-STF5801H

Transmission distance

0~20km(Optional 40km/60km)

Wavelength

1310nm/1550nm

Optical fiber connector type

FC

Transmit power

-10-3dbm

Fiber Count

1core

Receiver sensitivity

Better than-34dbm

Compatible with standard

Support SMPTE292M, SMPTE259M standard

Rate

Working at 270Mbps ~ 1.5Gbps

Video Interface

1 BNC

Data Interface

1 RS485 industrial terminal

The nominal input and output level

800mVp-p±10

The nominal input and output impedance

75Ω

Sampling frequency

32K/48KHz

The nominal input and output level

Unbalanced 2V p-p

Operating temperature

0 to 40 Degree Celsius / 32 to104 Degree Fahrenheit

Storage Temperature

-20 to 60 Degree Celsius /-4 to 140 Degree Fahrenheit

Relative Humidity

20~90%RH ( No condensation )

Power requirements

5~24VDC

Packing Contents
1. Main Unit. 1 Unit Mini SDI Fiber Optical Transmission
2. 2pcs Power Adapter
3. 1pcs User Manual
