Home - Products -HDBaseT Extender

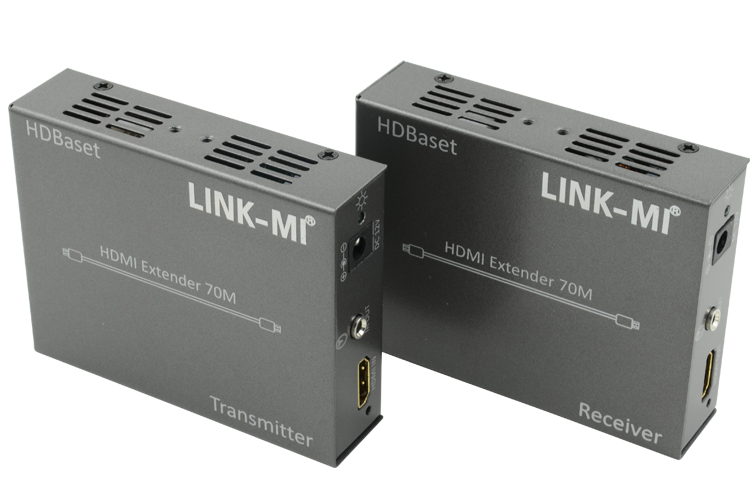

LM-EX70-4K2K

LINK-MI LM-EX70-4K2K HD extender(HDBaset 70M)

Introduction:
1.Supports full HD 1080p@60Hz,3D , 4K × 2K/30HZ HDMI Signal transmission
2.1080p Full HD signal through Cat6a Lines can be extended 70 M
3.The use of HDBaset Technical support HDMI Image signal extendered without compression and without delay
4.Support bi-directional infrared signals back to the serial port RS-232 Two-way signal transmission
5.Support HDCP ,CEC , 24 -Bit color depth
6.Support uncompressed audio LPCM And compressed audio DTS-HD,Dolby True HD
7.The use of POC Power supply, just as one end of the extenderer or the receiver for 12V Power supply

Description
