Home - Products -HDBaseT Matrix

LM-MX816IR-100

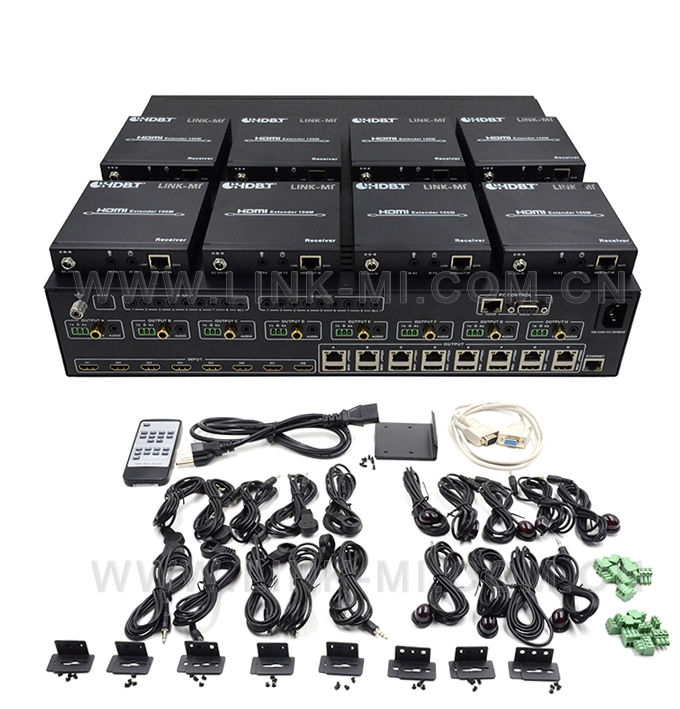

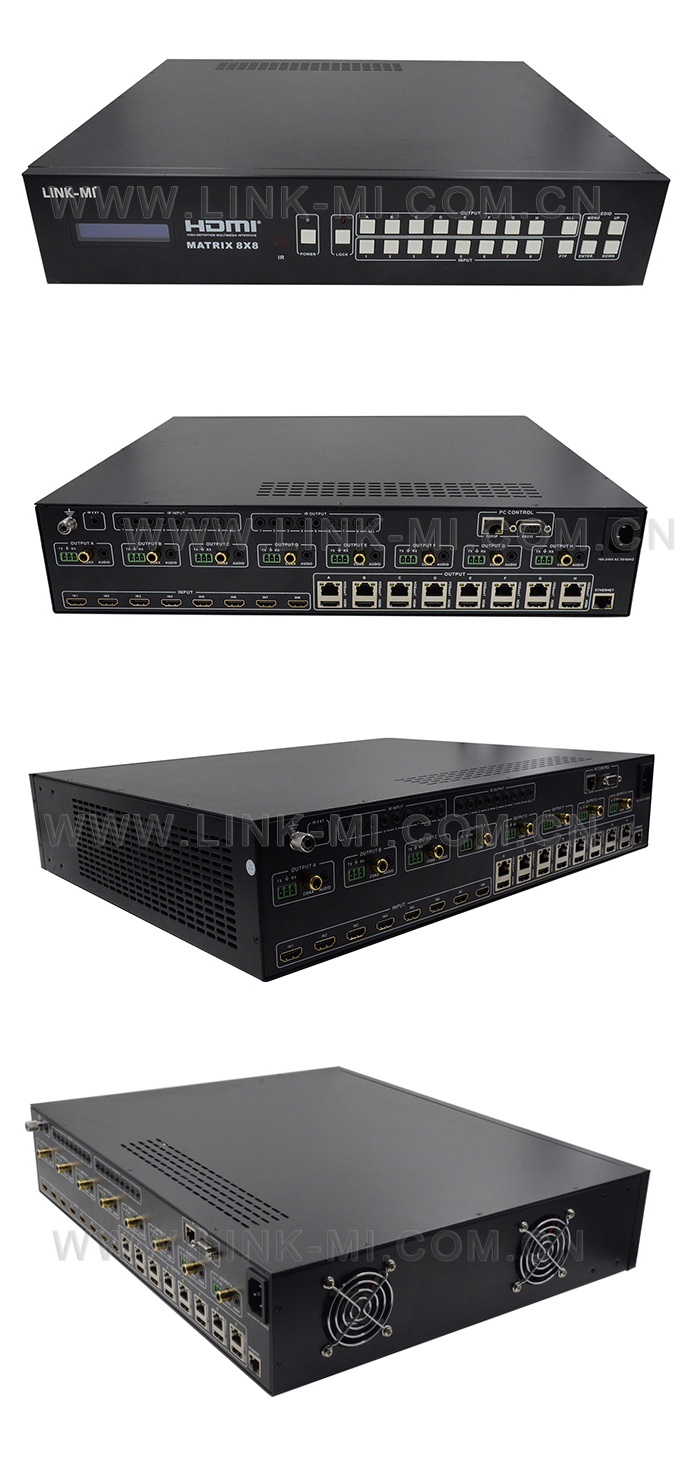

LINK-MI LM-MX816IR-100 100m 8*8 HDBaseT HDMI Matrix 4K POE

Introduction:
1.HDMI input supports: HDMI2.0, HDCP 2.2 and DVI1.0 compliant
2.Supports HDMI 3D pass-through
3.Supports resolutions from VGA~WUXGA and HD resolutions from 480i~1080p~4Kx2K@30 dependent upon the EDID settings
4.Supports transmission distances up to 328ft/100m (100m Version) or 230ft/70m(70m version) through CAT5e/6/7 cable
5.Support POE function
6.Supports simultaneous HDMI and CAT outputs
7.Supports wideband IR(30-60Khz) matrix system, IR transport channel can be forward or backward. And supports GLOBAL IR input and output
8.Supports RS-232, remote control, on-panel control and TCP/IP Control
9.Supports smart EDID management
10.Supports Digital Audio and stereo audio outputs
11.Support bi-directional IR& RS232 control
12.Supports HDBaseT LAN Serving function
13. Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Description
