LM-MX07

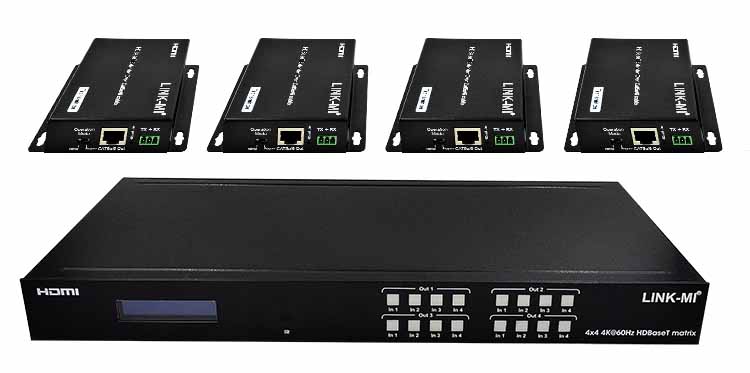

LINK-MI LM-MX07 4K HDBaseT 4x4 Matrix, HDCP 2.2 compliant

Introduction:
1.HDMI 2.0 version (Support HDMI2.0 4K50/60Hz YUV420).
2.Support high definition resolutions 4K@60, 4K@30, 1080P, 1080i, 720P and standard video format.
3.Transmit up to 70m under 1080p, 35m under 4K@30Hz.
4.HDCP 2.2/1.4 compliant.
5.4 HDMI input ports, 4 HDBaseT output ports.

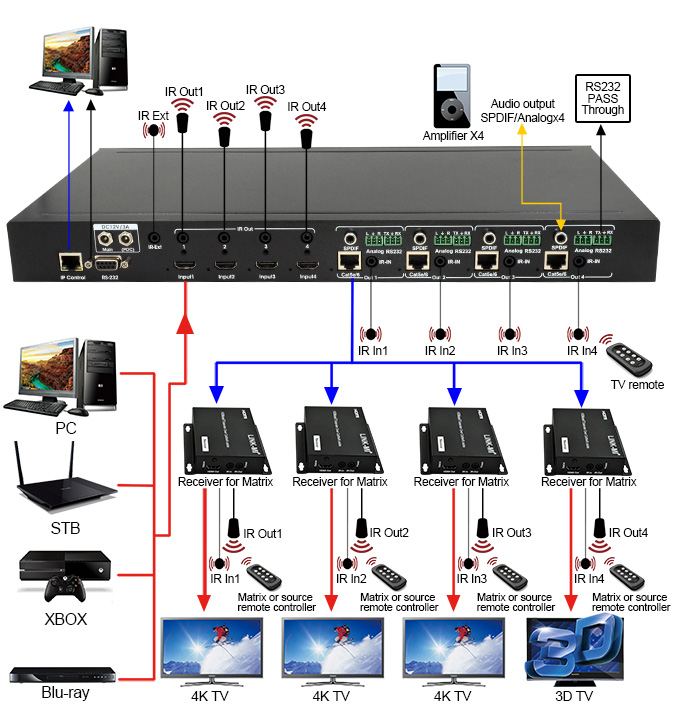

6.Any one of the 4 sources to any one of the 4 Displays.
7.With wide-band Bi-Direction IR routed control(38~56KHz)
8.IR extension from Sender to Receiver or from Receiver to Sender.

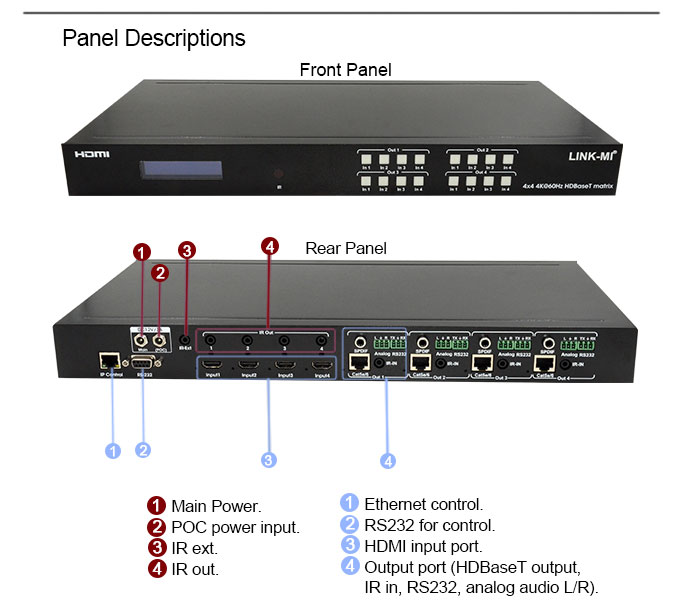

9.Support Panel Button, IR Routing, RS232 Control, IP Control Via Telnet.
10.POC (Receiver powered by HDBaseT Matrix).
11.1U rack design, easy installment.

Description
