LM-AHD04

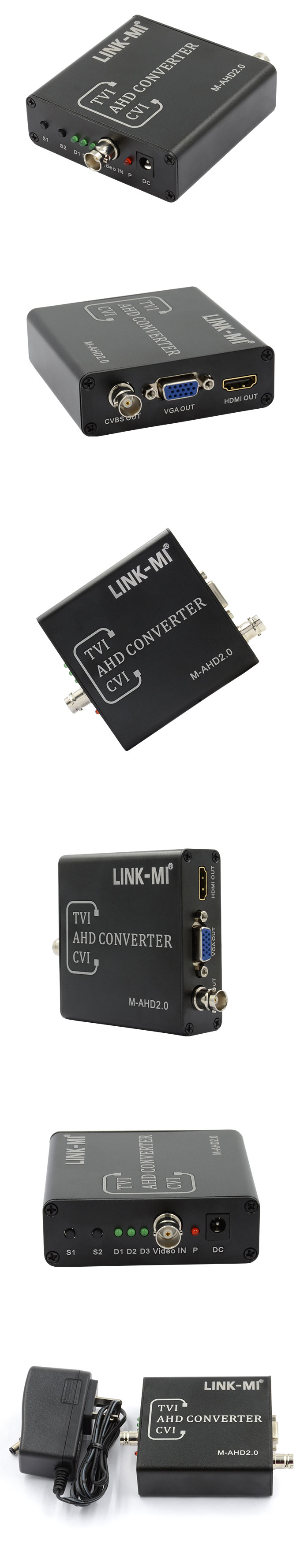

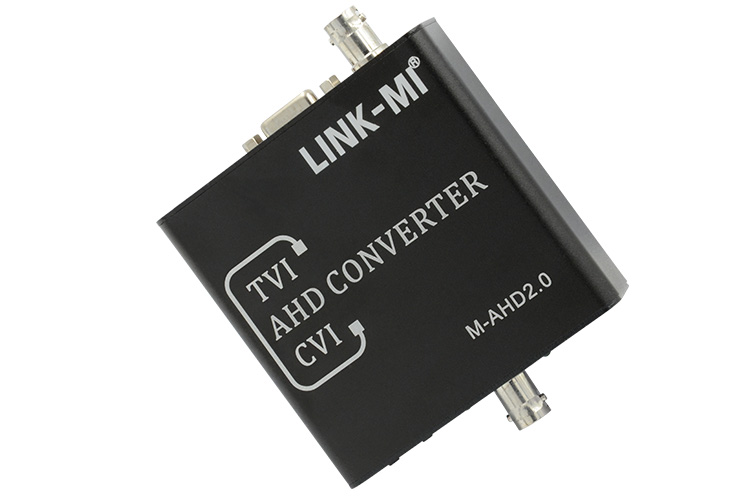

LINK-MI LM-AHD04 AHD/TVI/CVI/BNC to HDMI/VGA/BNC Converter

Introduction:

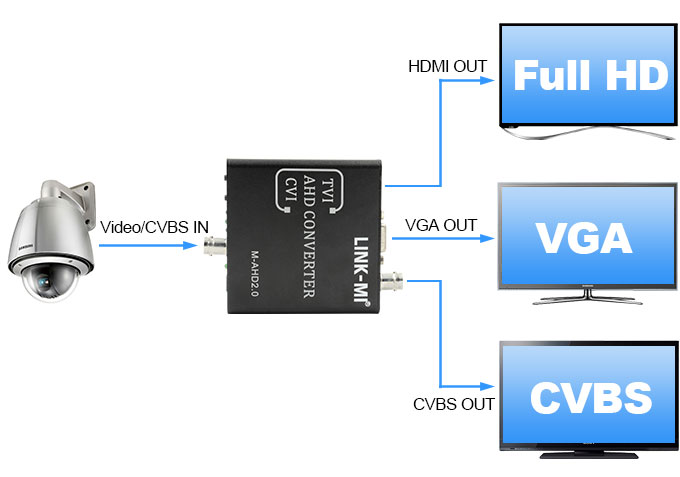

1. Converts AHD/TVI/CVI/CVBS signal to HDMI/VGA/ CVBS
2. HDMI Output compatible with HDCP, HDMI1.4
3. HDMI output resolution: 720P@50/60Hz, 1080P@50/60Hz
4. VGA output resolution:
800x600@60Hz, 1024x768@60Hz, 1366x768@60Hz, 1280x720@60Hz, 1920x1080@60Hz
5. Selectable output by physical button on the device
6. Supports both NTSC/PAL Video inputs –Automatic detection
Note: Distance may be affected by the cable quality and length
