LM-EP36

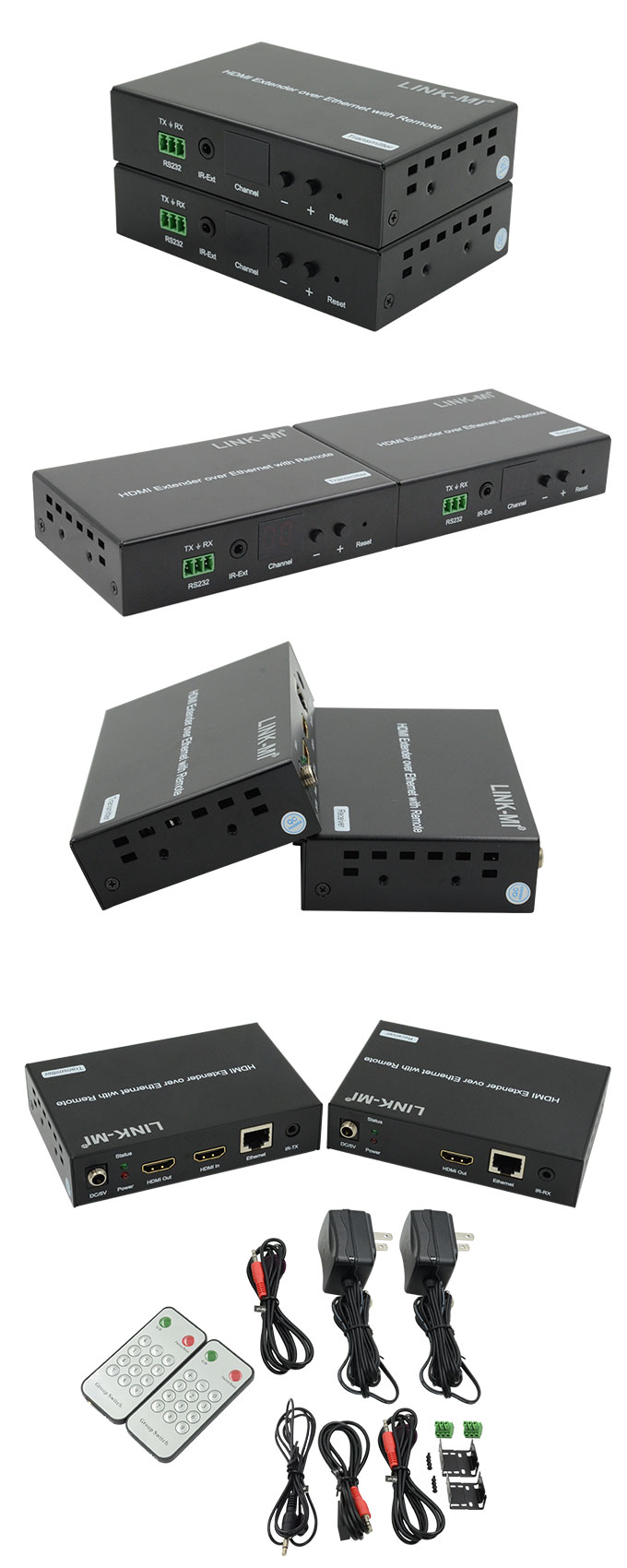

HDMI Extender over IP Extender With LED, Remote, POE, RS232

Introduction:
1. Using H.264 compression encoding, support resolution up to 1080p@60hz
2. Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
3. With IR Remote to choose the source, with LED to show the Group ID
4. Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
5. Support LPCM audio format
6. Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
7. Wide-band IR pass through to control the source (38khz to 56khz)
8. By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate

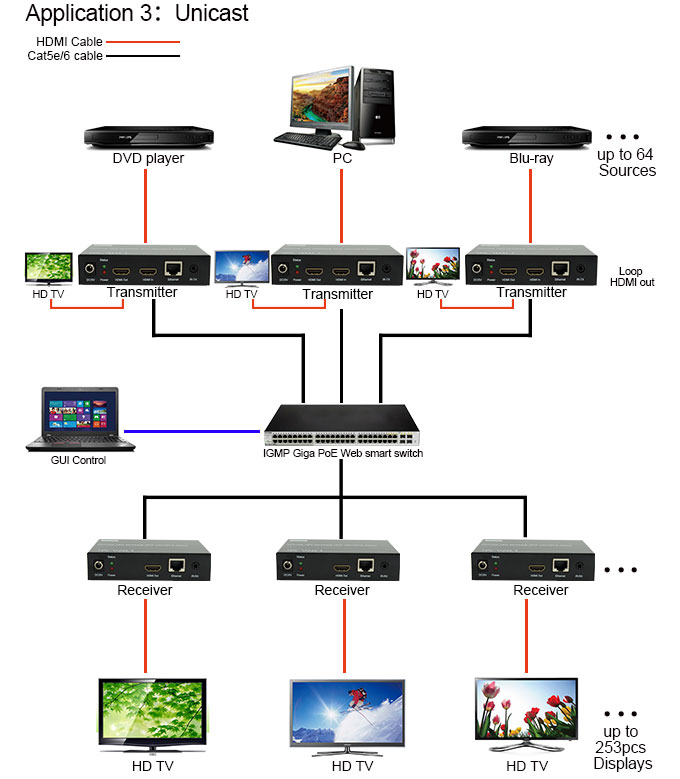

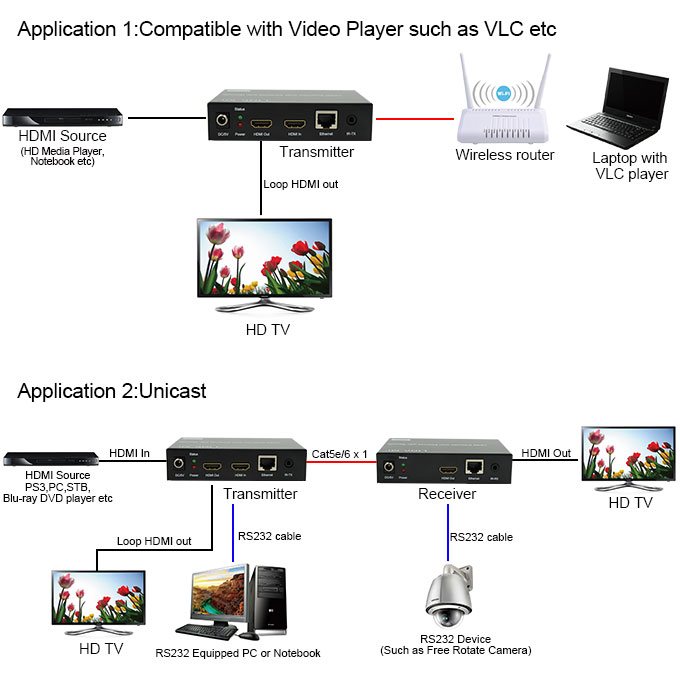

9. Support one to one, one to many, many to one, many to many modes, with large cascade
10. Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POE Switch)
11. HDCP Compliant
12. Support PC tool control 13. DC 5V 1A power supply

Description
