LM-SPE104-POE

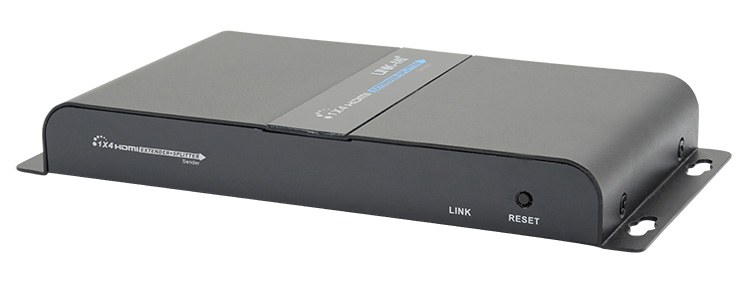

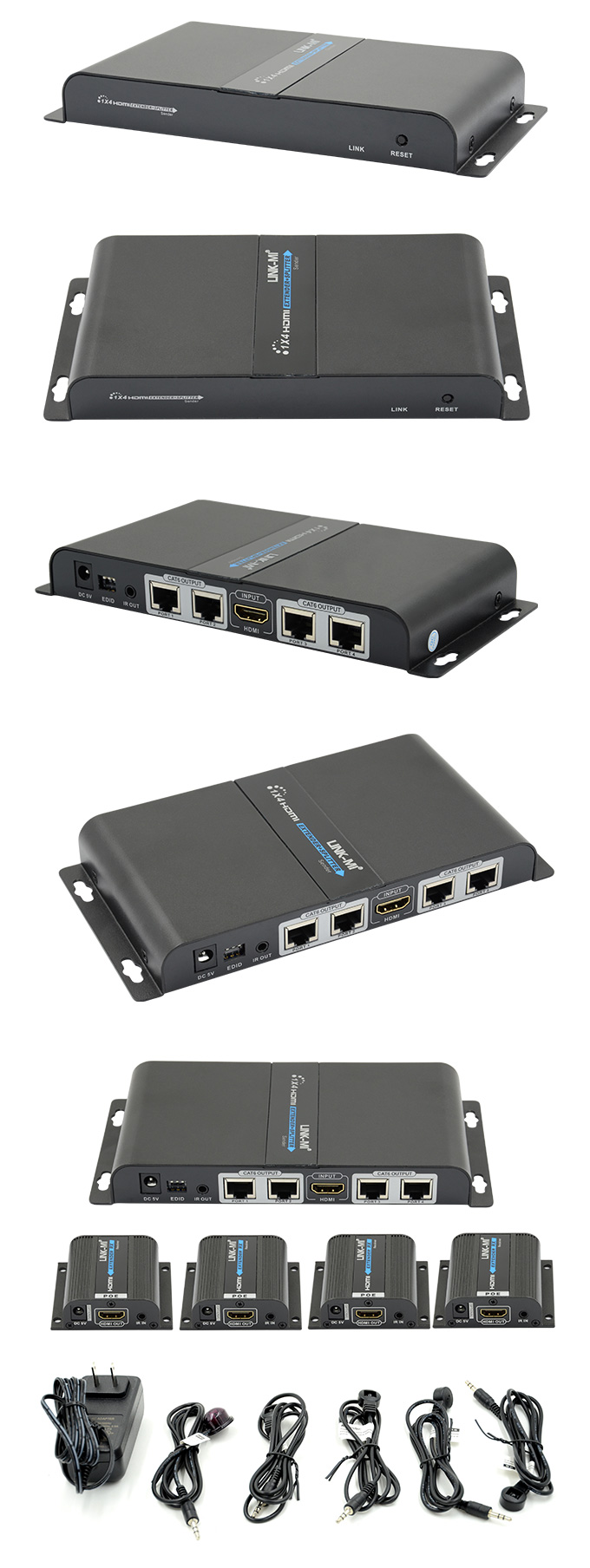

LINK-MI LM-SPE104-POE 1 × 4 HDMI Extender Splitter

Introduction:

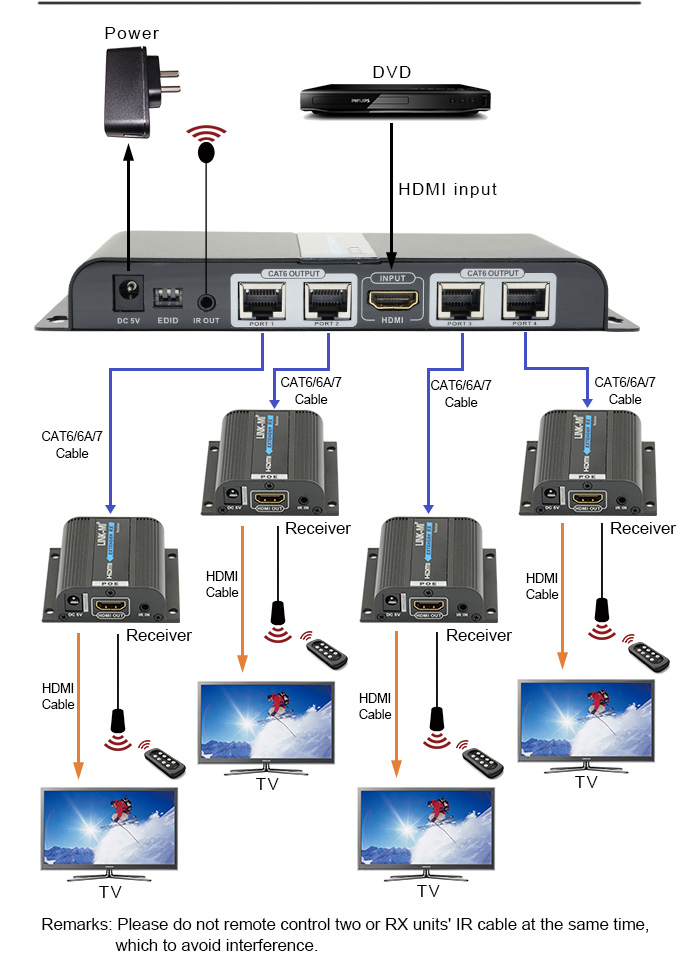

1. Distribute 1 HDMI source to 4 HDMI displays over network cable
simultaneously.
2. Compatible with CAT6/6a/7 network cables.
3. The transmission distance is up to 40m/131ft.
4. The highest resolution supported is . 1920x1080@60Hz
5. Support 20~60Hz IR pass back.
6. Support EDID . setting function
7. Support power from transmitter to receiver unit over the CAT6 cable.
8. Plug and play.
9. Wall-mounted function, easy installation.
