Home - Products -HDMI Matrix

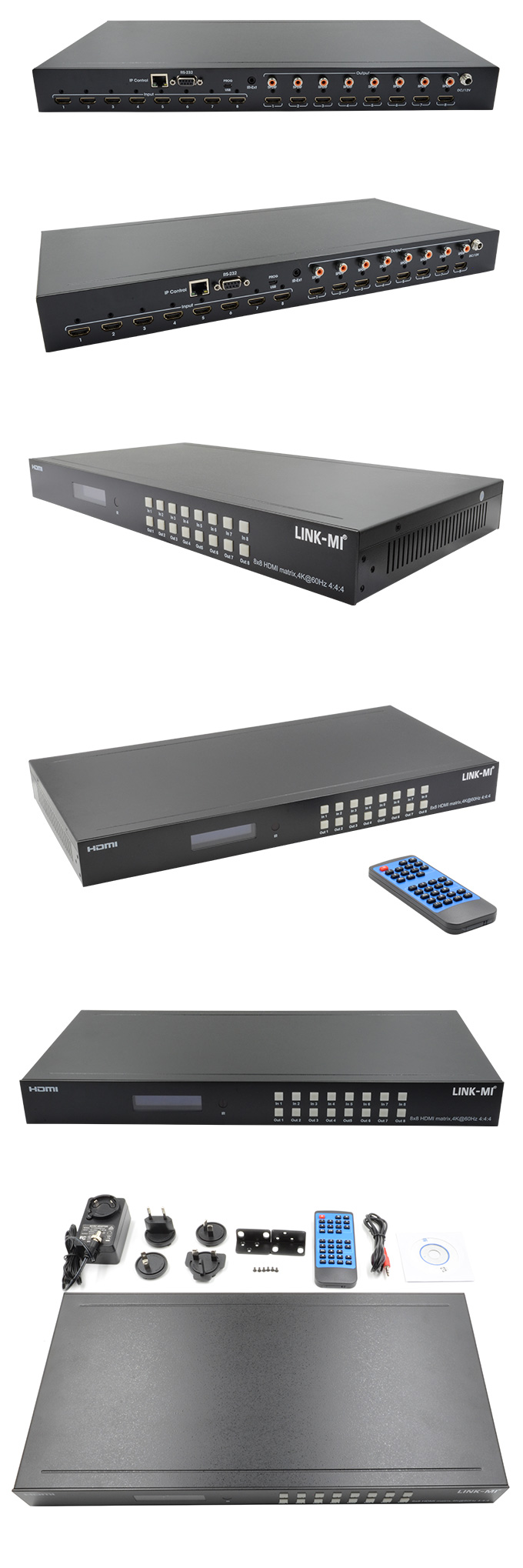

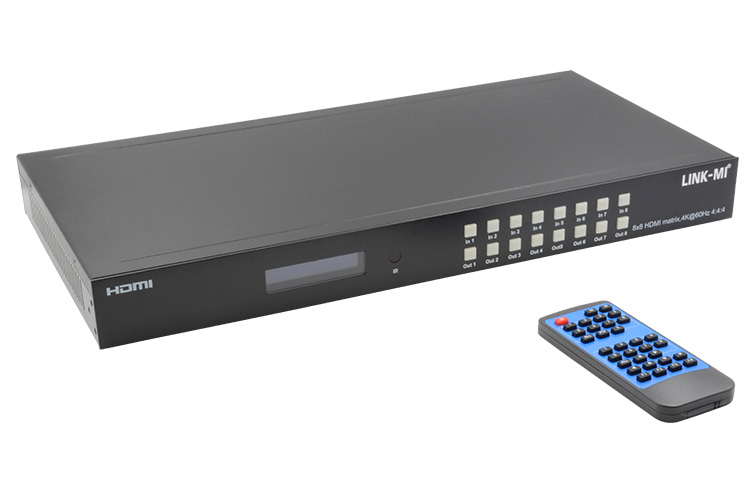

LINK-MI LM-MX11B 8x8 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR
1.HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2.Support 3D
3.Bandwidth upto 18Gbps
4.HDCP2.2 input ,HDCP2.2 output
5.HDCP1.4 input, HDCP1.4 output
6.Support HDR10
7.8xHDMI Input, 8xHDMI output with 8xSPDIFAudio

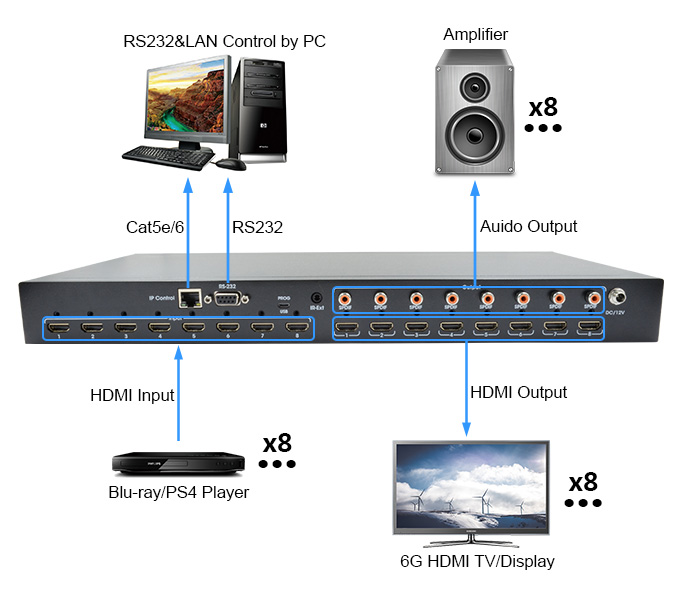

8.Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
9.Support Dolby True HD and DTS-HD master audio
10.Micro USB interface for user to upgrade firmware

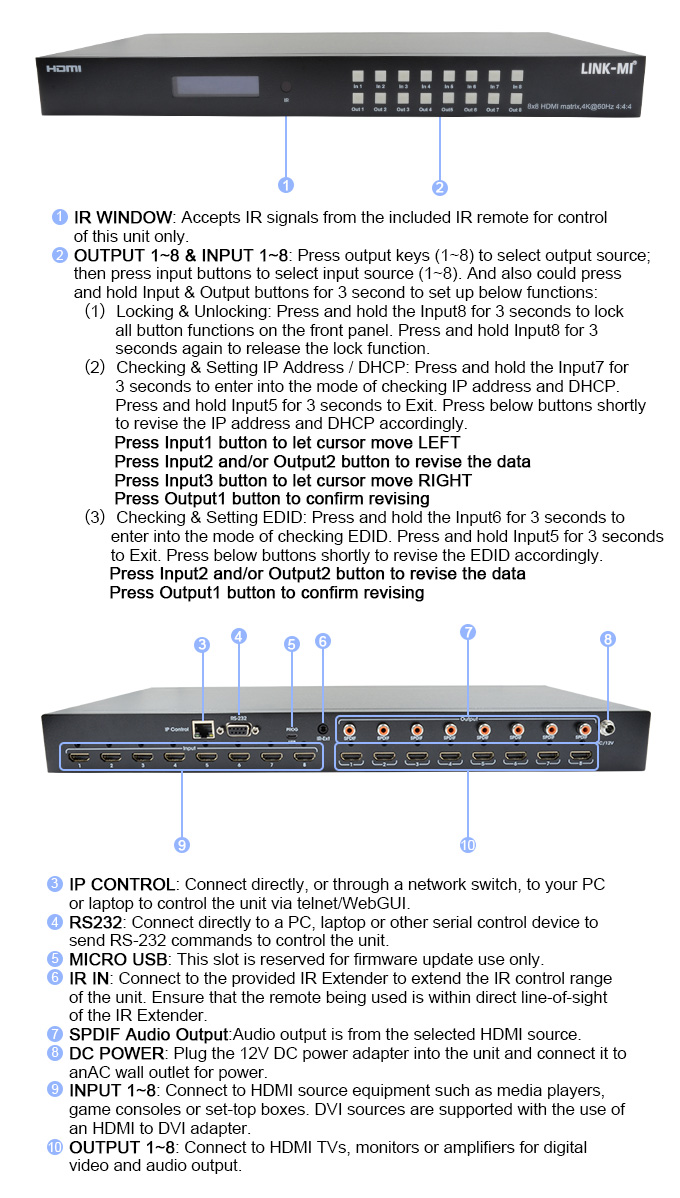

11.Controllable via front-panel buttons, IR remote, RS232, IP , Web GUI Control
12.1U rack design, easy installment
13.Unit size: L440XW220XH44.5mm
