LM-MX09B

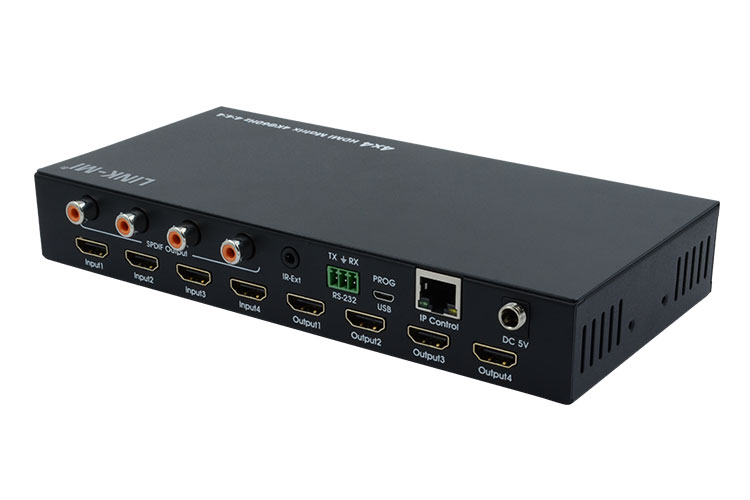

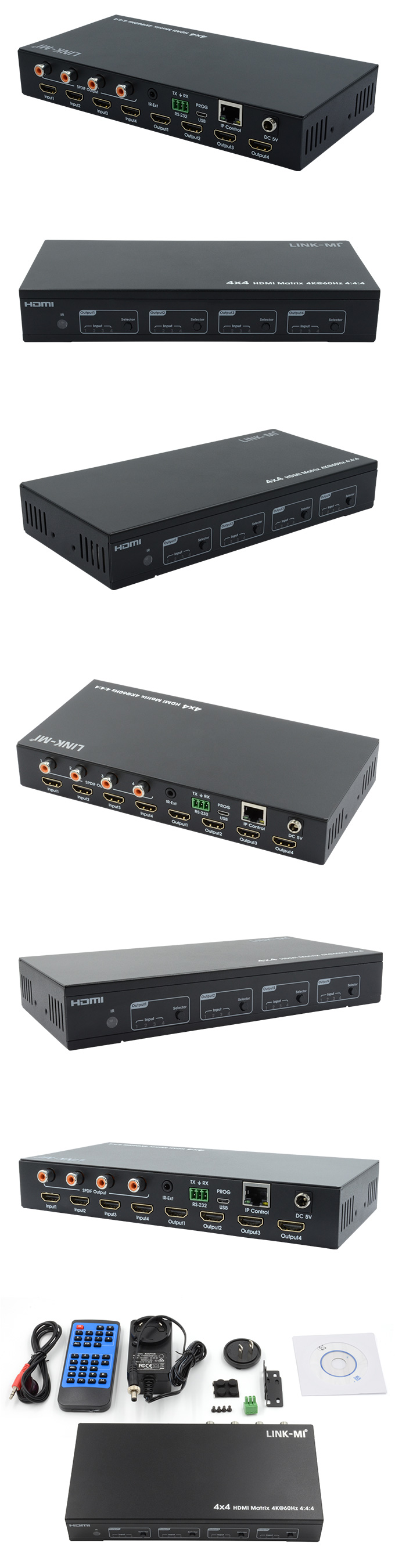

LINK-MI LM-MX09B 4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR

Introduction:
1.HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2.Bandwidth upto 18Gbps
3.HDCP2.2 input ,HDCP2.2 output
4.HDCP1.4 input, HDCP1.4 output
5.Support HDR10

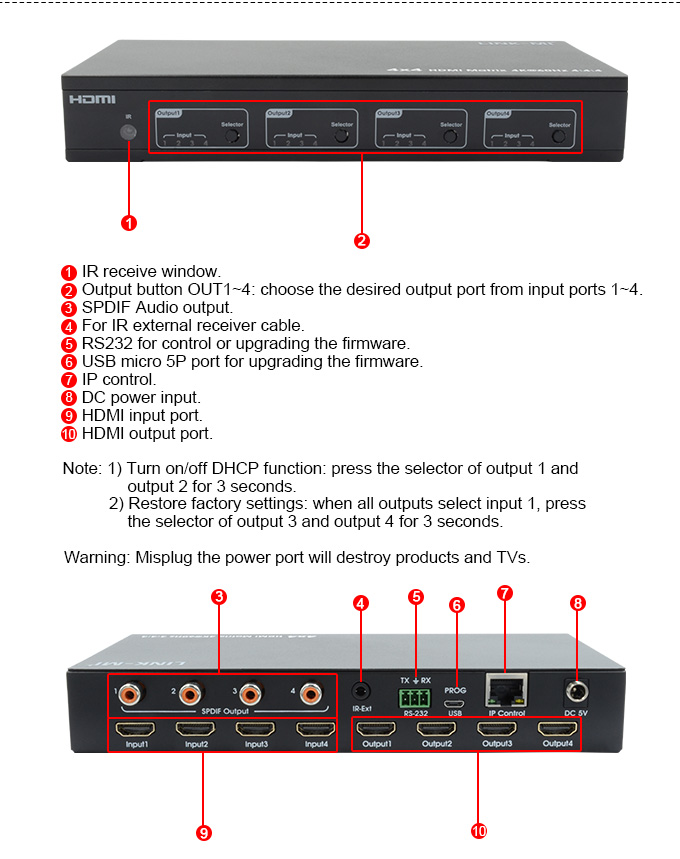

6.4xHDMI Input, 4xHDMI output with 4xSPDIF Audio

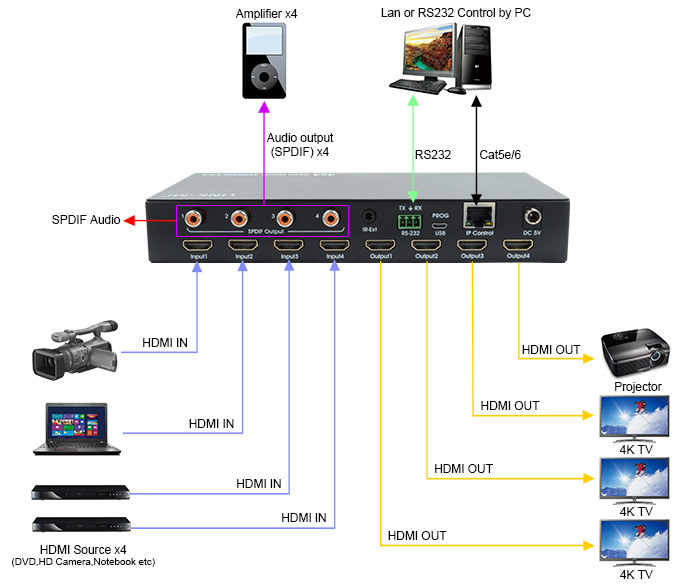

7.Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
8.Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
9.Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode
10.Support firmware updating through USB port
11.Unit size: L216XW105XH34mm

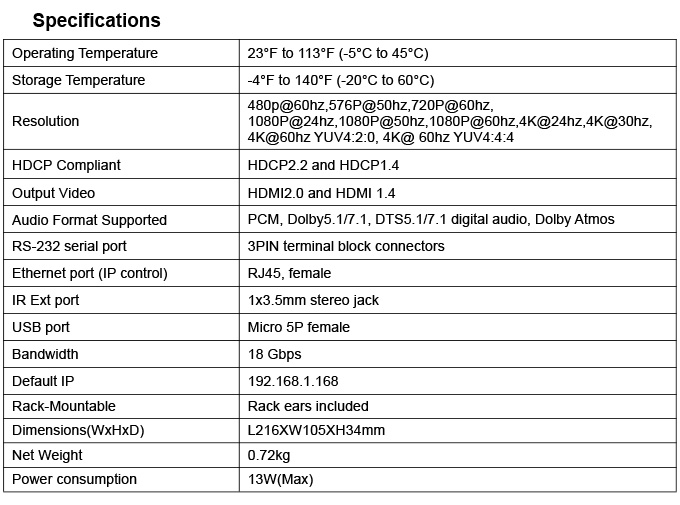

Description
