LM-MX44-ARC

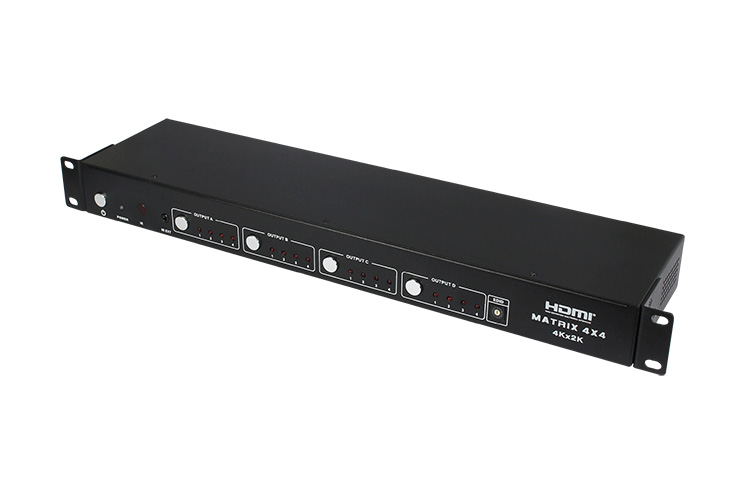

LINK-MI LM-MX44-ARC 4 By 4 HDMI Matrix with ARC

Introduction:
1.Compliant with HDMI 2.0,HDCP 2.2
2.Supports multiplexed HDMI 4-input and 4-output
3.Supports video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.
4.Deep Color support 48/36/30/24-bit
5.Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
6.Supports four channel ARC control
7.Supports button,IR RS232 etc various controlled ways

Description
