LM-HD808-4K

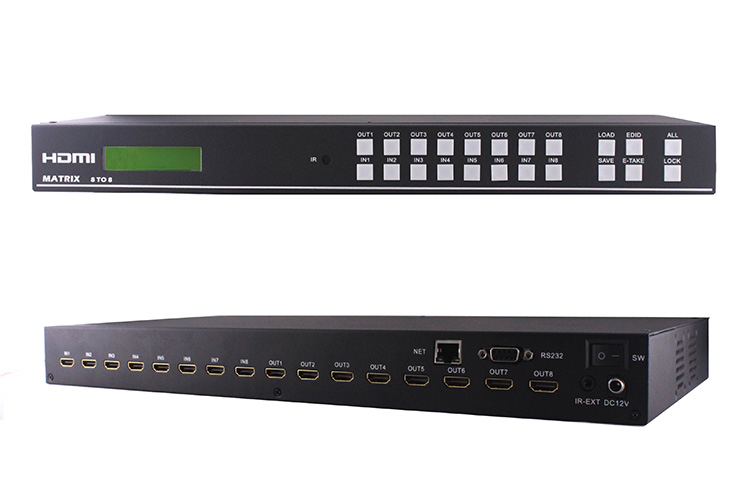

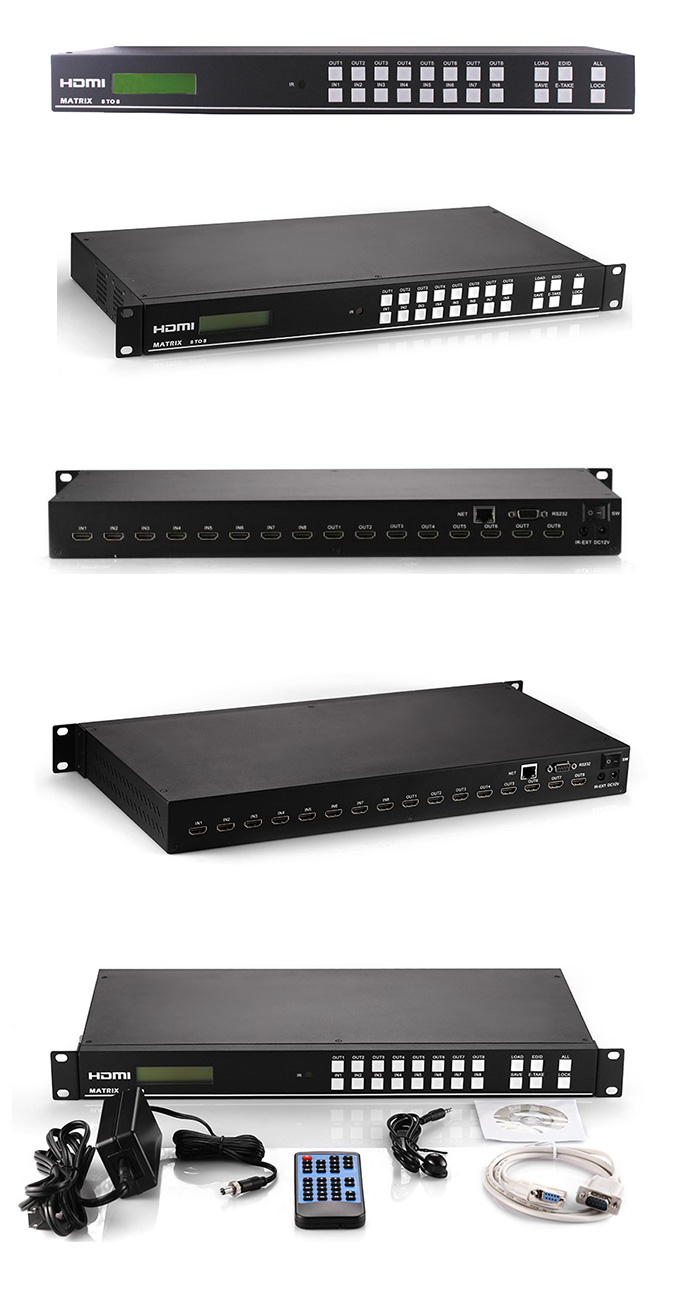

LINK-MI LM-HD808-4K HDMI 8×8 Matrix

Introduction:

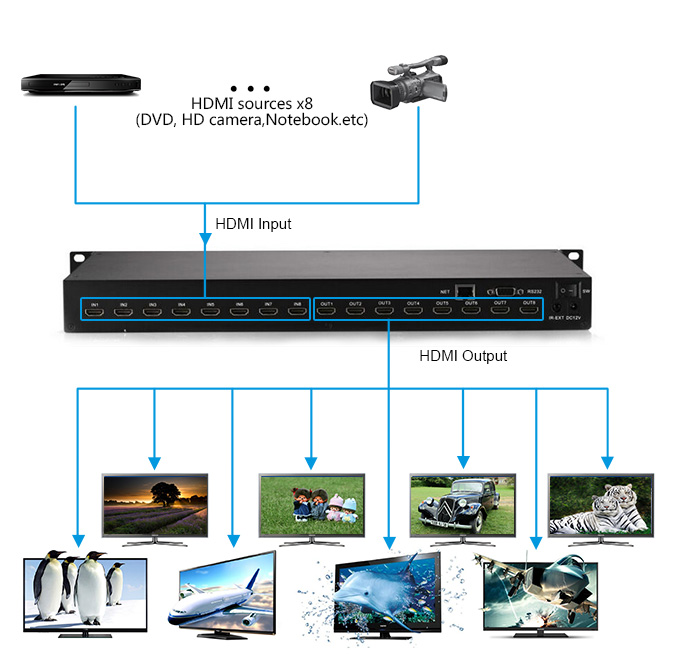

1.Allows up to eight HDMI audio/video devices to be independently switched to eight HDMI monitors, HDTV’s,
or projectors.
2.The eight output channels could show the same or different source simultaneously no matter the source is HDCP or not.
3.Reading and saving EDID function from displays.
4.Support high definition resolutions, including:
4Kx2K,1080p, 3D, 1080i, 720p and other standard video formats.
5.Each port support both HDMI and DVI inputs.
6.With extra infrared extension receiver.

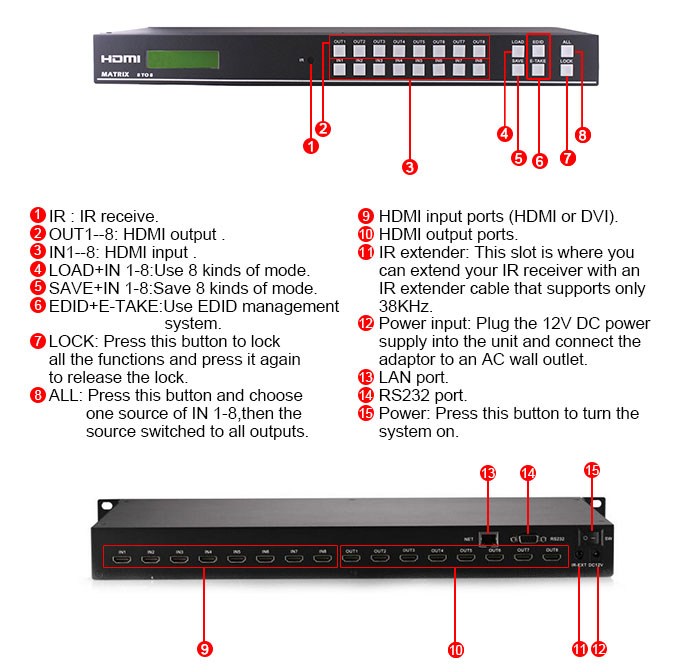

7.Four switching modes: panel buttons, local IR, RS232 and Ethernet.
8.HDCP compliant
9.HDMI 1.4 supported.

Description
