Home - Products -HDMI Splitter

LM-SP03

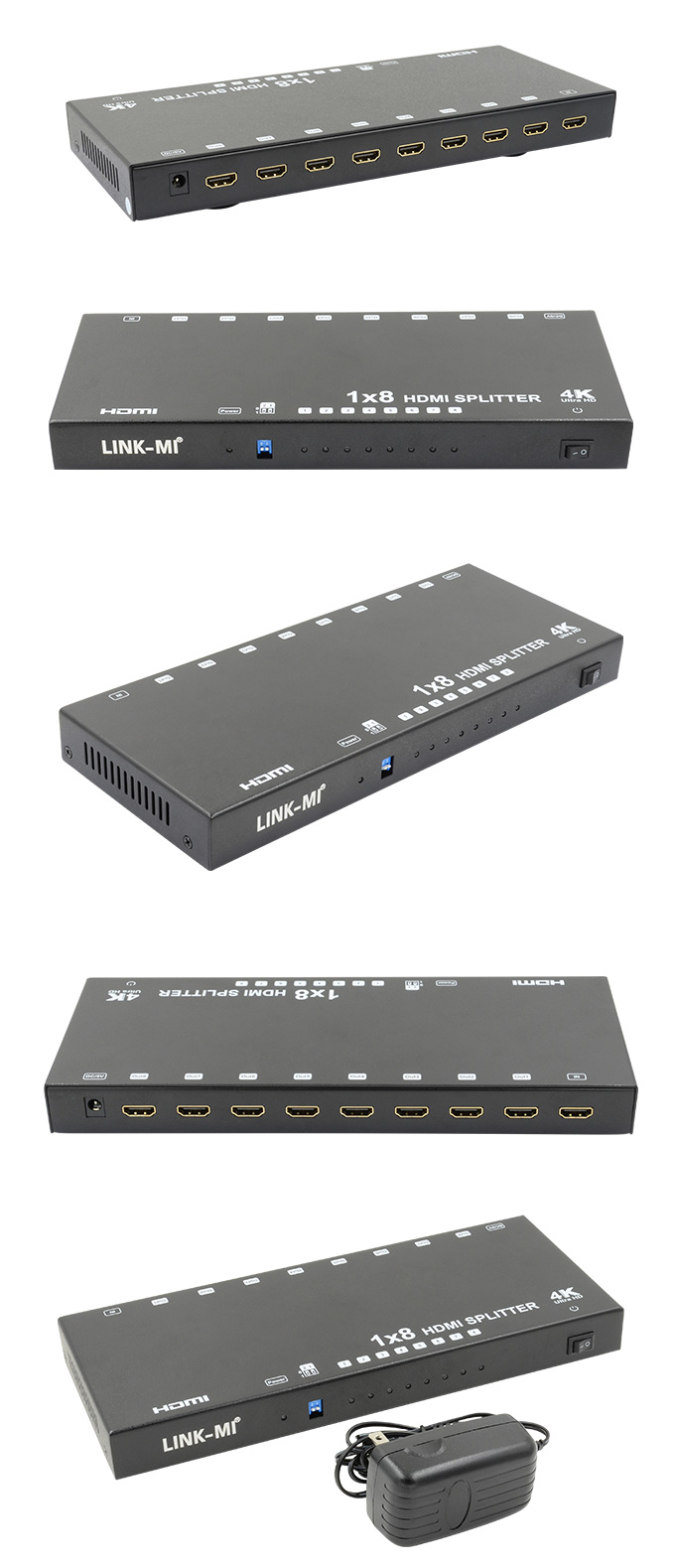

LINK-MI LM-SP03 1x8 HDMI Splitter Supports 3D, 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

Introduction:

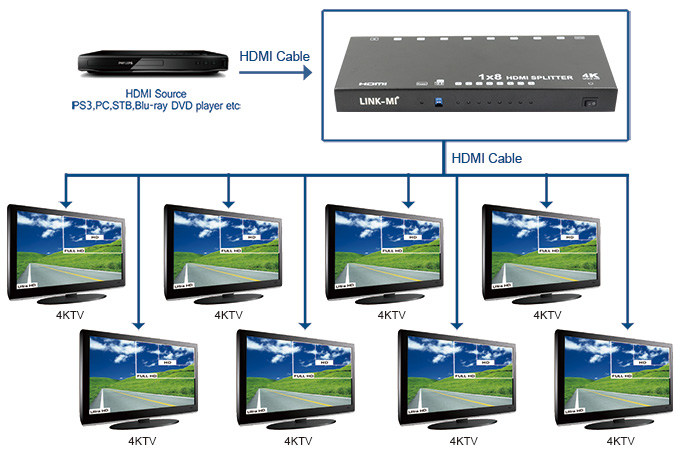

1.Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
2.Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.

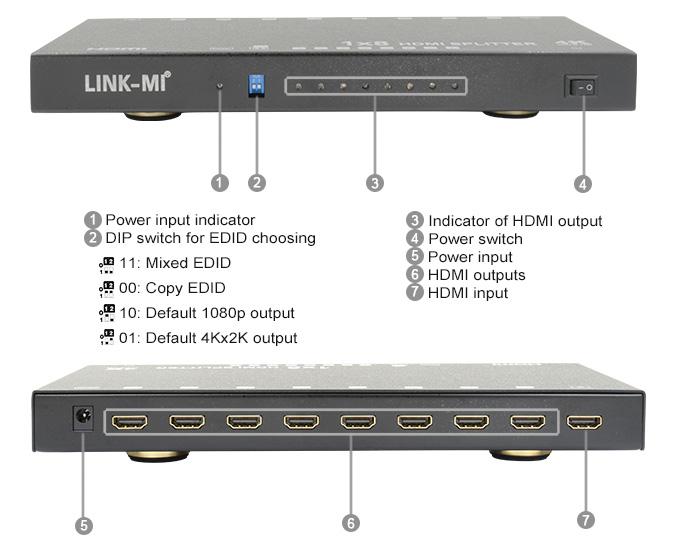

3.Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output, default 4Kx2K output.
4.Supports HDCP2.2 to HDCP1.4.
5.Supports 36 bit Deep Color.
6.Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
7.Support 3D.

Description
