LM-SP05S

LINK-MI LM-SP05S HDMI 2.0 1x2 HDMI Splitter, HDCP2.2

Introduction:

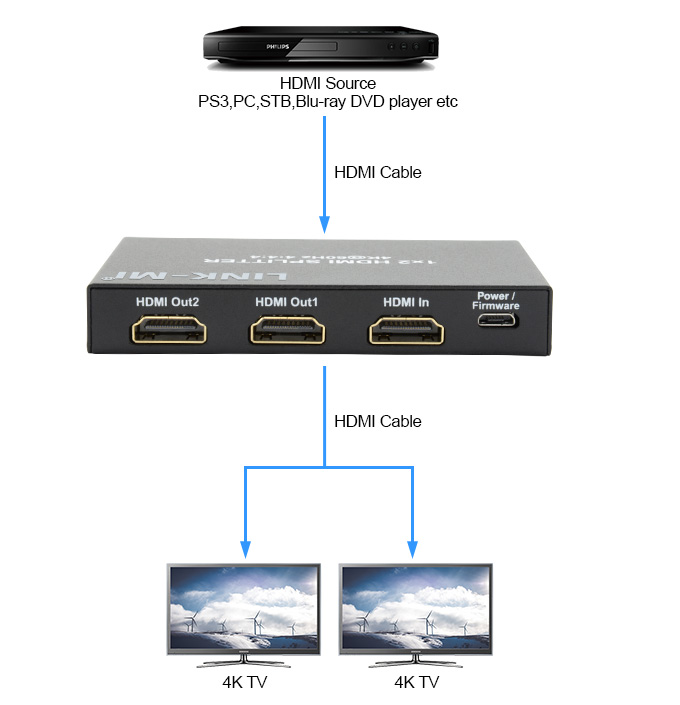

1.Simultaneously displays an Ultra Hi-Def source on up to two Ultra HD displays.
2.Supports resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).

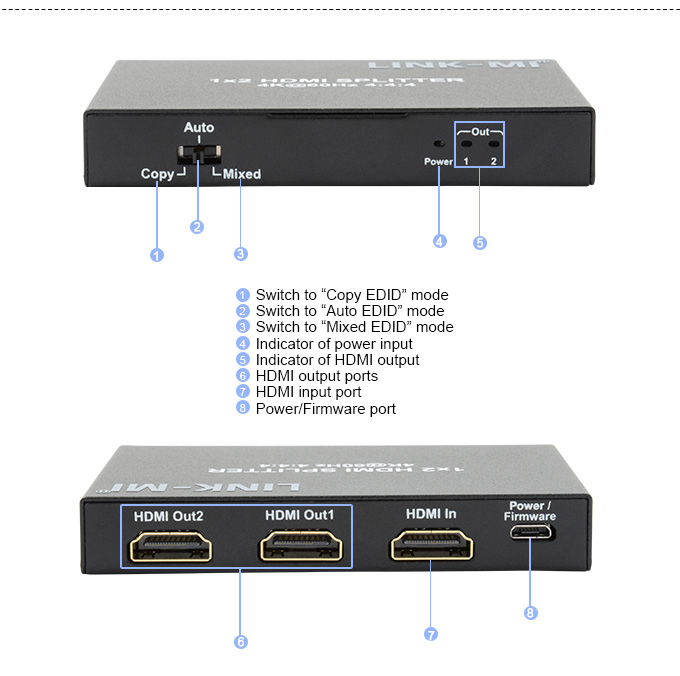

3.Supports four kinds of EDID handling abilities.
4.Supports HDCP2.2/1.4 Compliant.
5.Supports 36 bit Deep Color.
6.Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
7.Support 3D.
8.Bandwidth 18G.
9.Support HDR.
10.Support online firmware upgrade via Micro USB Port.

Description
