LM-HH02-Audio

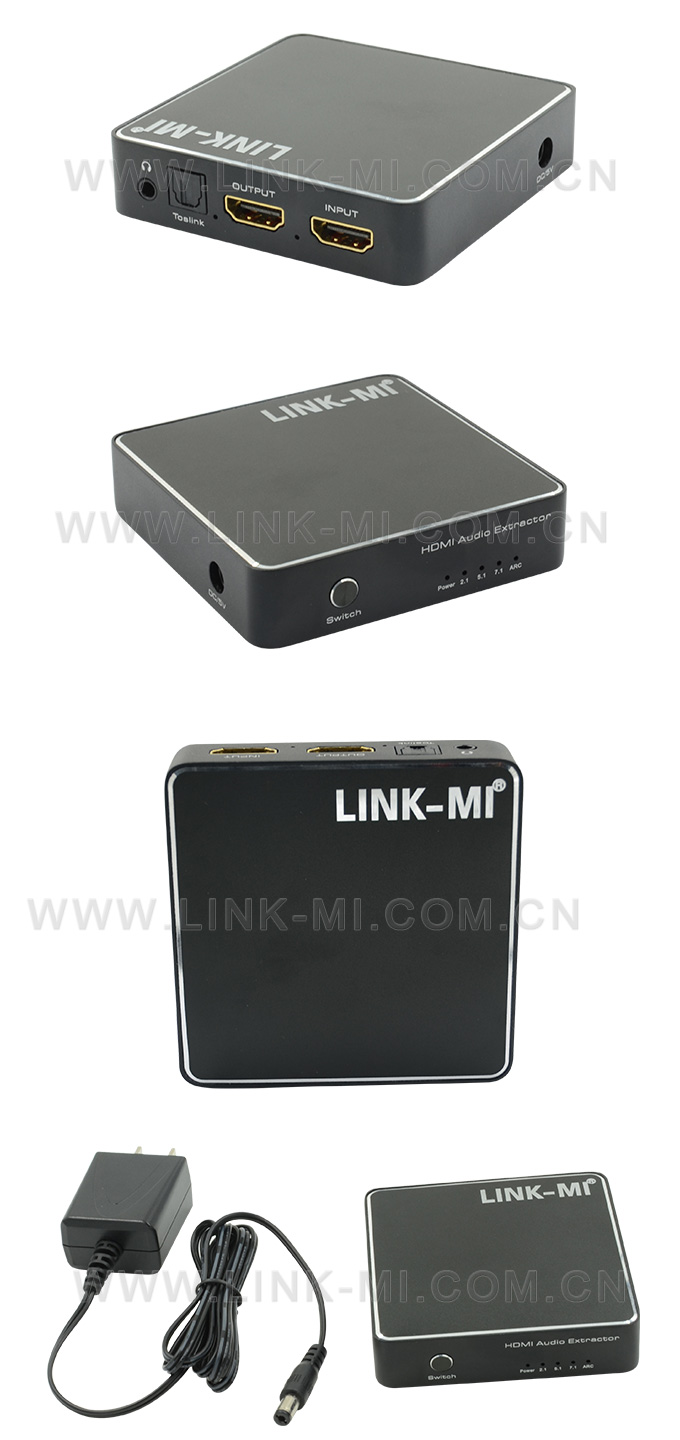

LINK-MI LM-HH02-Audio HDMI to HDMI Decoder with SPDIF + 3.5MM Audio + ARC

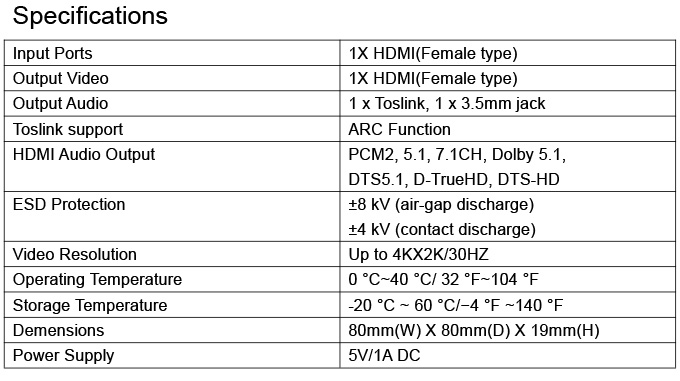

Introduction:

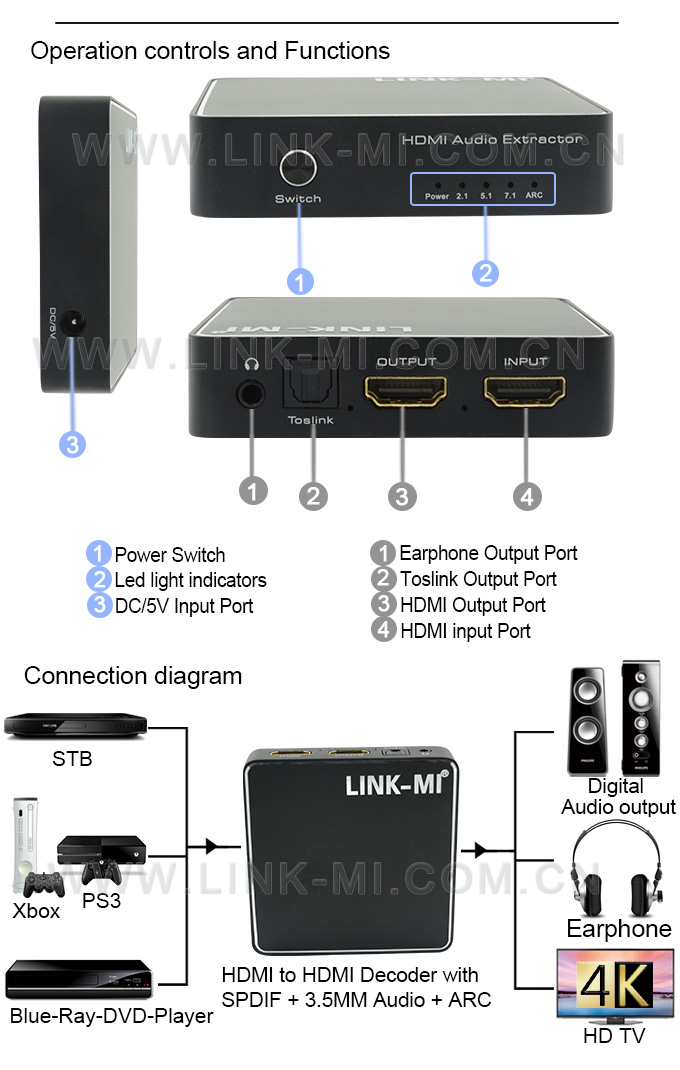

1.1 Port HDMI input, 1 Port HDMI output and Audio Exctract
2.Audio output support: ToslinK X1, Analog Audio X1
3.Compliant with HDMI 1.4a.
4.Support 3D Video & 4Kx2K/30HZ, 8, 10, 12 & 16 bits per color depth
5.No need to install drivers, portable, flexible, plug and play.
6.Support: PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
7.Support: Frequency Bandwidth 2.97Gbps

Description
