LM-EW60-3DIR

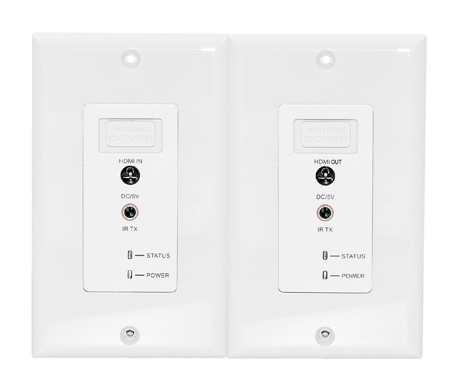

LINK-MI LM-EW60-3DIR 60m Single Cat5e6 HDMI Wall Plate Extender

Introduction:
1. Each set includes one transmitter and one receiver
2. Following North American Wall Plate Standard
3. Modular design
4. Using single UTP cable ( cat5e/6 ) to substitute HDMI cable to achieve long distance transmission, the UTP cable follows the standard of IEEE-568B
5. Transmission distance reaches up to 60 meters under the video format of 1080p
6. Auto-adjustment of feedback, equalization and amplify
7. Signaling rates up to 2.25Gbits in support of 1080p display
8. With Infrared Control signal passing through function
9. Supports 3D Video format

Description



Specification

 Brand

 LINK-MI

 Model No.

 LM-EW60-3DIR

 Material

 PE Plastic

 Color

White

 Interface

 HDMI

 Application

 Extend HDMI Signal up to 60m over single UTP cable

 Operating Temperature Range

 -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )

 Operating Humidity Range

 5 to 90%RH ( No Condensation )

 Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 Volts P-P ( TTL )

Video Format

DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p 3D Video

 Video Output

 HDMI

 Audio Format

DTS-HD Master Audio, Dolby True-HD etc.

Transmission Distance

1080p 8-bit 60m(Max.) Over Cat5e/6/24AWG/Solid ( Recommend to use 23AWG Cat6 Cable )

 Power Consumption

3 Watts ( Max. )

 Dimension ( L*W*H )

115*70*35mm

Net Weight

260g( Pair )

Packing Contents

1. Main Unit. HDMI Wall Plate Extender Transmitter & Receiver

2. 2pcs DC 5V 1A Power Supply

3. IR TX Unit ( IR Emitter Cable )

4. IR RX Unit ( IR Receiver Cable )

5. Operating Instructions
