Home - Products -SDI Converter

LM-HSD3

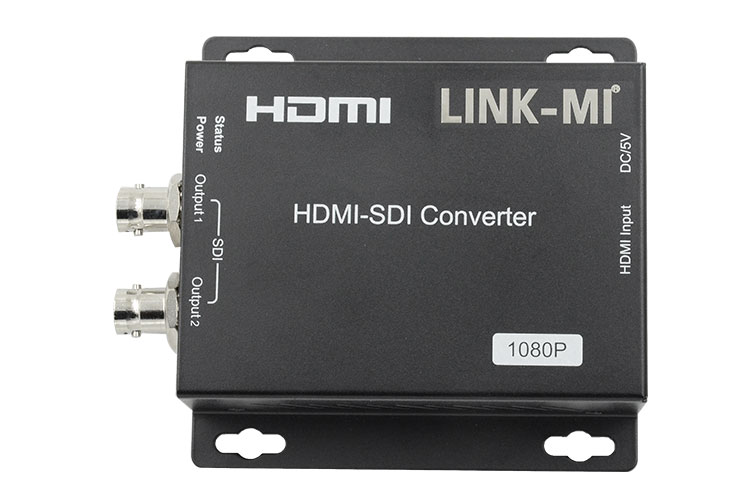

LINK-MI LM-HSD3 HDMI to HD SDI Converter

Introduction:
1.HDMI to SDI Analogue Conversion
2.Full HDMI support including embedded audio

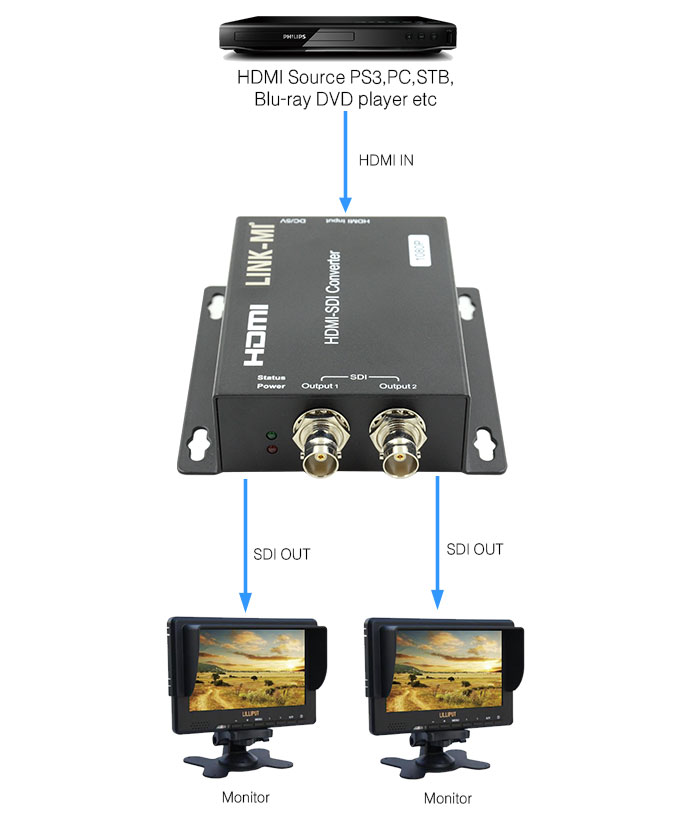

3.Distributes 1 HDMI source to 2 SDI output simultaneously.
4.Support 1080p@25Hz,1080p@29.97Hz,1080p@30Hz,1080P@60Hz
5.Compliant HDCP
6.Uses 5V power

Description



Specification

Brand

LINK-MI

Model No.

LM-HSD1

Material

Metal

Color

Black

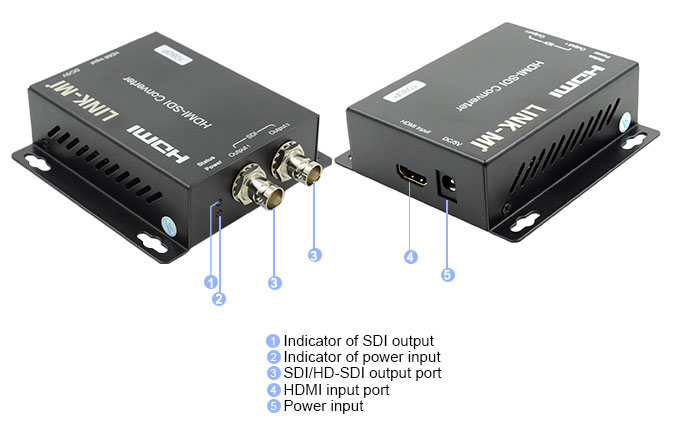

Interface

HDMI, SD/HD/3G SDI

Application

Convert HDMI signal to SD/HD/3G SDI signal

Operating Temperature Range

-5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )

Operating Humidity Range

5 to 90%RH ( No Condensation )

HDMI Video Format

480i ( 29.97/30 ); 576i ( 25 ); 720p ( 60/59.94/50 ); 1080i ( 30/29.97/25 ); 1080p ( 60/59.94/50/30/29.97/25/24/23.98 )

SDI Video Format

SMPTE-425M 1080p ( 60/59.94/50 );

SMPTE-274M 1080p ( 30/29.97/25/24/23.98 );

SMPTE-296M 720p ( 60/59.94/50 );

ITU-RBT.656 576i ( 25 );

SMPTE-125M 480i ( 30/29.97 )

Input

HDMI

Outputs

3G SDI/ HD SDI/SD SDI

HDMI

Standard Type A Connector

HDCP

Compliant HDCP

Power Consumption

2.5 Watts ( Max. )

Dimension ( L*W*H )

95*95*29mm

Packing Contents

1. Main Unit. HDMI to HD SDI Converter

2. 1pcs DC 5V 1A Power Adapter

3. 1pcs User's Manual
