Home - Products -SDI Converter

LM-AS01

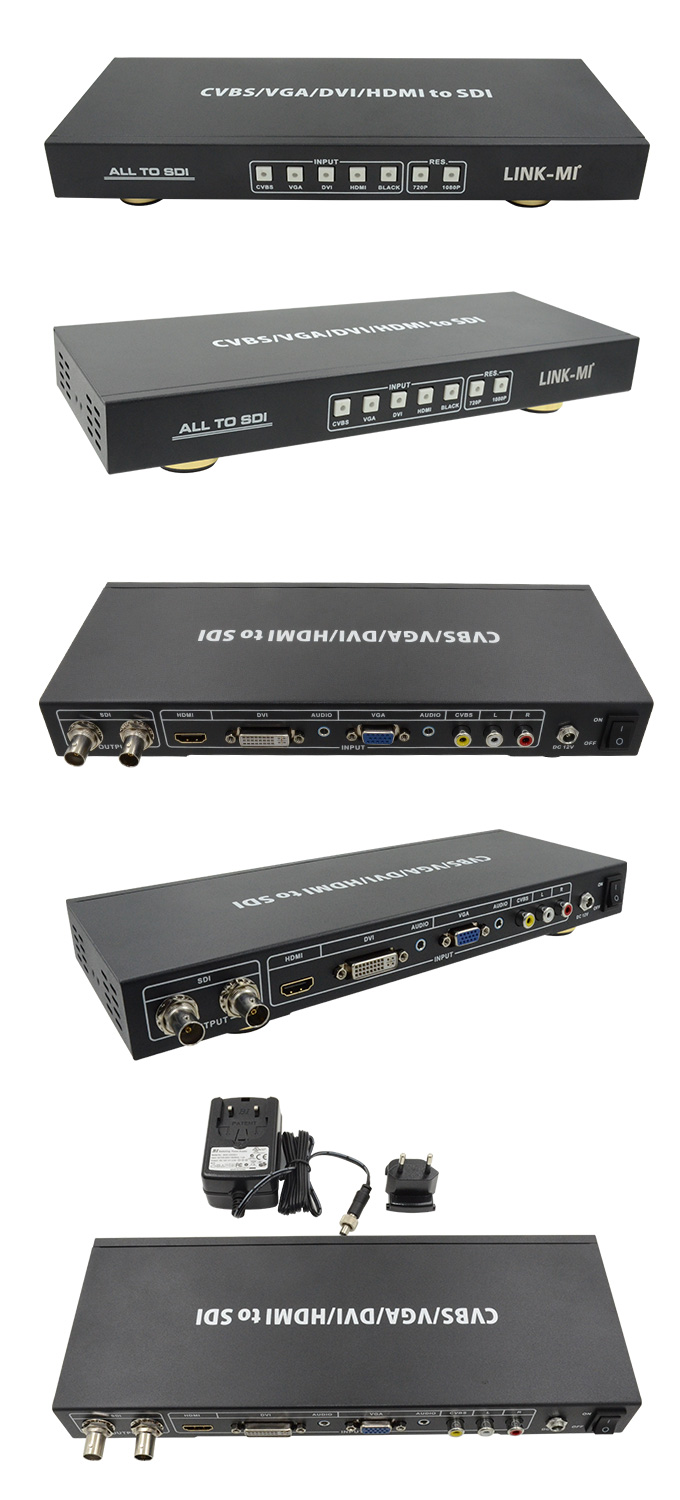

LINK-MI LM-AS01 ALL to SDI Scaler Converter

Introduction:
1.Supports HDMI, DVI, VGA and Composite Video input signals;
2.Supports two SDI output simultaneously;
3.Supports SDI output distance up to 100 meters (3G-SDI), or 200 meters(HD-SDI);
4.Scales any input signal to the HD-SDI or 3G-SDI output signals;
5.Supports HDMI input timings: VGA@60 ~ SXGA@60 & 480i ~1080p@60 Hz;
6.Supports VGA/DVI input timings: VGA@60 ~1920×1080@60 Hz;
7.Supports Composite Video input timings NTSC, PAL,SECAM;
8.Supports Black screen signal output;

Description
