LM-SF02

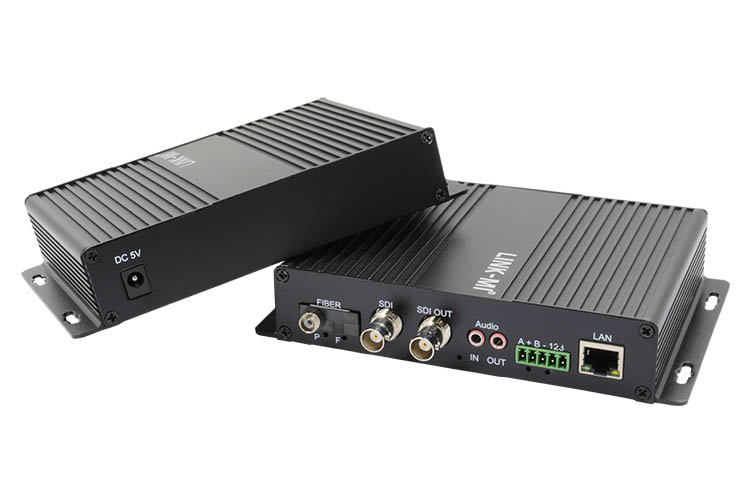

LINK-MI LM-SF02 SDI Data Media Fiber Converter

Introduction:
1.3G/ HD-SDI video (embedded audio signal) over a fiber
with lossless long-distance transmission
2.Support 1CH unidirectional or bidi RS485 or RS422 or
RS232 control data transmission , 1ch full duplex 10/
100M Ethernet.
3.ASIC integrated designed technology with core independent
intellectual property rights
4.Advanced circuit design, full hardware program to ensure
the reliability of equipment, consistency and stability
5.Widely used in TV live broadcast, high-definition video
conferencing, high-definition video surveillance and
other fields
6.Support single-mode or multi-mode fiber transmission (the
user needs to confirm the transmission cable type)
7.Provide commonly used LC/FC / SC / ST fiber interface
8.Maximum transmission distance up to 120KM over single
mode fiber
9.3G-SDI high digital Video and audio signal optical
transmission
10.Adapt to SDI 270Mbps, 1.485Gbit Speed and 3G
automatically
11.Accept customerization and OEM business mode.

Description
