LM-SF01

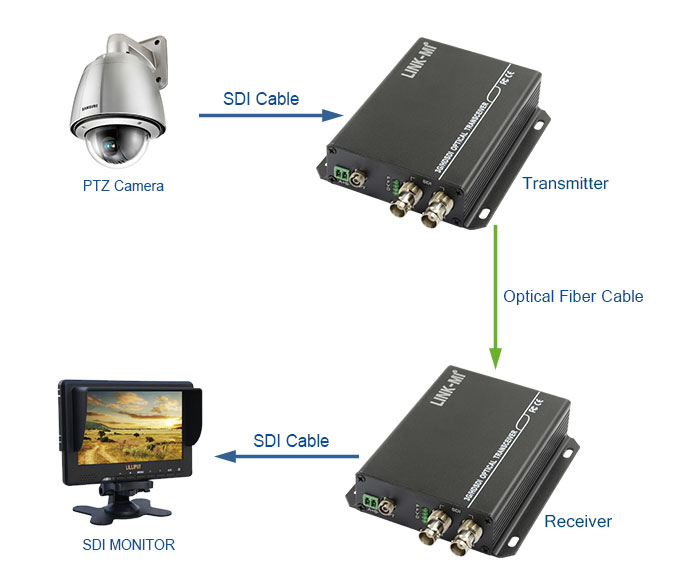

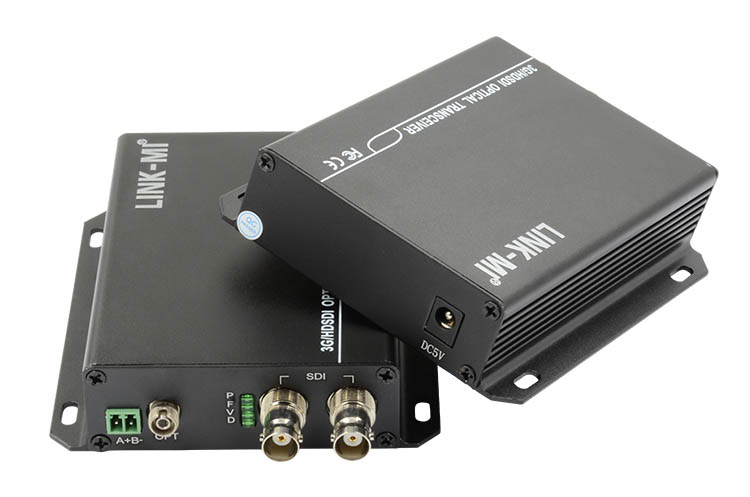

LINK-MI LM-SF01 HD-SDI Unidirectional Fiber Optic Transmitter/Receiver

Introduction:
1. 1ch unidirectional HD-SDI video with embedded audio over one fiber
2. Range from 19.4Mb/s to 1.485Gb/s
3. SMPTE 292M (1.485Gb/s) clock recovery
4. Support all SMPTE 295M standard,143Mb/s-360Mb/s
5. Support SMPTE 305M (SDI),SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and
DVB-ASI (270Mb/s) standard
6. Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
7. 150M automatic cable equalization, all the 1.485Gb/s rate below (Belden 1694A)
8. Optical network management system
9. LED status indicators monitor the critic parameters
10. Optical network system
11. Support hot swap
12. Support stand-alone,1U rack mount and 4U rack mount

Description
