LM-SDH3

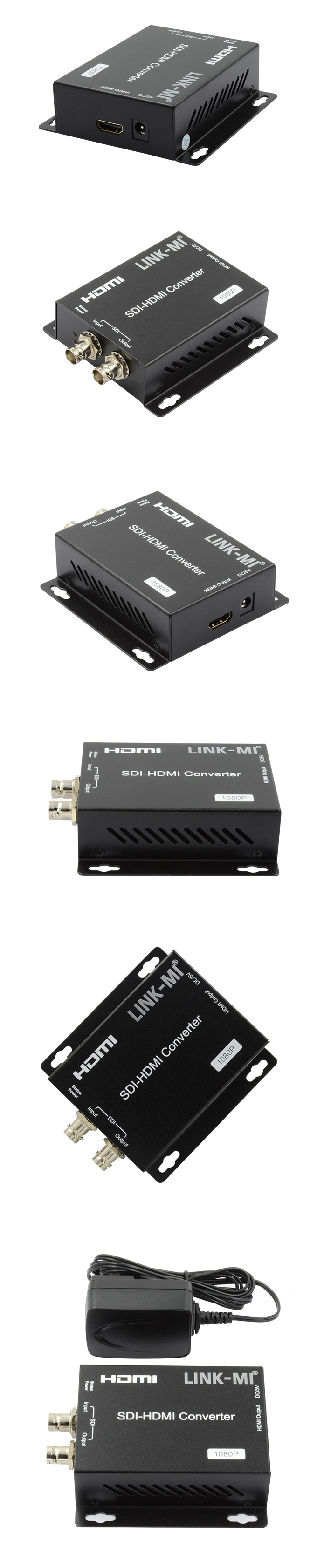

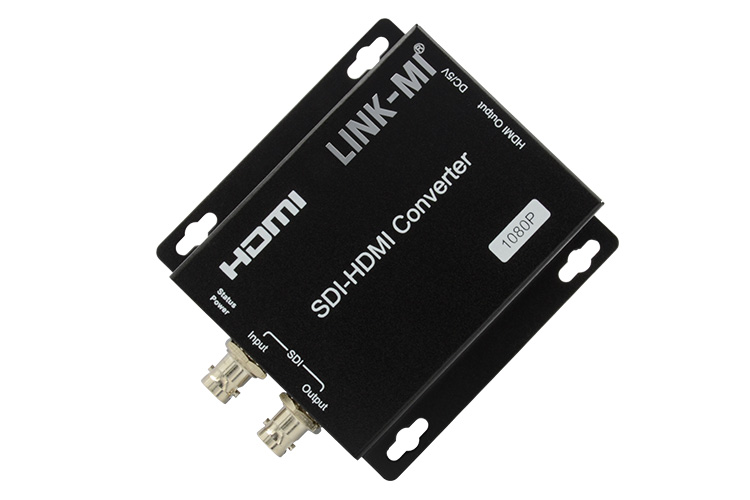

LINK-MI LM-SDH3 SDI to HDMI Converter, With 1 x looping SDI output

Introduction:
1.Convert SD/HD/3G-SDI to HDMI

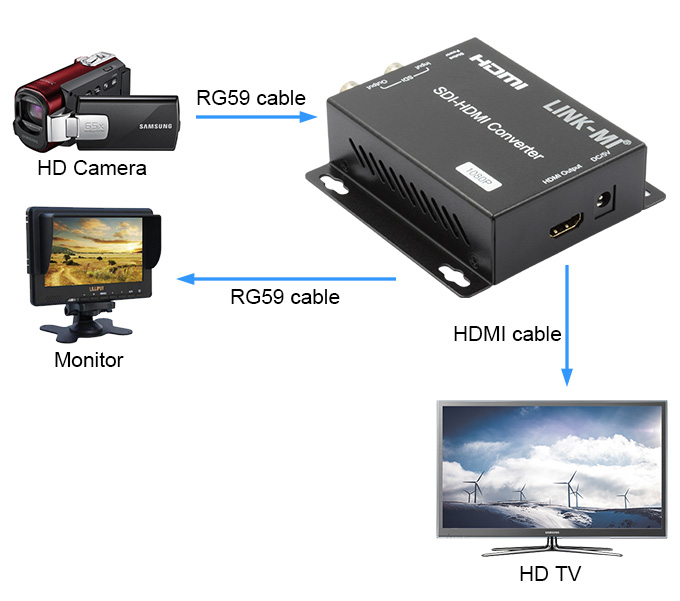

2.Distribute 1 SD/HD/3G-SDI to 1 HDMI plus 1 looping SDI output simultaneously
3.Support SDI input resolutions:
1080p (50/60/59.94/30/29.97/25/24/23.98Hz)
1080i (60/59.94/50Hz), 720p (60/59.94/50Hz),
576i (50Hz), 480i (60/59.94Hz)
4.Work with HDMI to SDI converter to cascade many layers
5.Support transmission distance up to 100m over RG59 cable
6.With mounting ears

Description
