LM-EP37

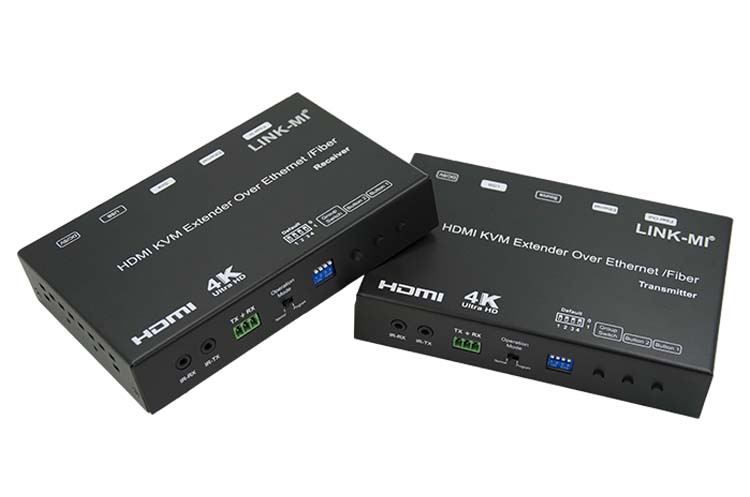

LINK-MI LM-EP37 4K HDMI+USB KVM Extender over IP / Fiber With POE

Introduction:
1.4K UHD HDMI over IP extension
2.USB 2.0 over IP extension
3.RS232 bi-directional extension and RS232 control
4.4 bits switch for 16 stream channel selection
5.Support Dolby True HD, DTS-HD Master Audio
6.Support two way Wide Band IR extension (38khz-56khz)
7.Transmit over single Cat5e/6 cable up to 120m
8.Transmitter over Fiber Optical cable up to 60km (Single Mode)
9.Networking environment under Giga Ethernet switch and CAT5e cable
10.Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
11.Output video rotation
12.Output video partial enlargement
13.802.3af compliant POE (No need power supply when connecting with POE Switch)
14.HDCP 1.4 compliant

Description
