LM-PSD14

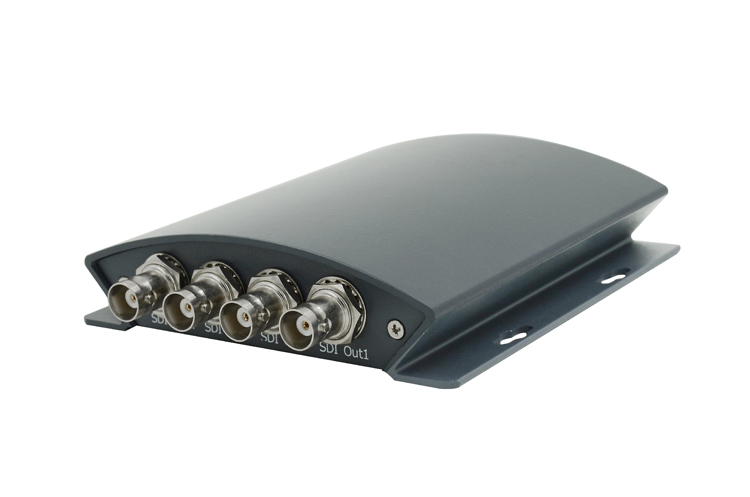

LINK-MI LM-PSD14 Professional Broadcast 1x4 HD/3G SDI Splitter

Introduction:
1. Supports 3G/HD/SD SDI Signal Input
2. Supports 3G/HD/SD SDI Signal Output
3. Supports 1080p/1080i/720p/480i/576i Video format
4. Supports 1080PSF/ 720P 30/25/24Hz
5. Adaptively SDI Input signal
6. SDI input embedded audio de-embedding
7. SDI Output audio embedded
8. Supports Up-Conversion and Down-Conversion function
9. With three mode can be selected freely on Down-Conversion function
10. Re-Clocking function
11. Special features can be customized

Description

Specification

Name

Broadcast 1x4 3G/HD/SD SDI Splitter

Model No.

LM-PSD14

SDI Input

Signal

3G/HD/SD SDI

Connector

BNC ( IEC169-8 Standard )

SMPTE

270Mbps-2.97Gbps

Ability of Equalization

100M(3G SDI,1694A)

Impedance

75Ω

SDI Output

Output Signal

HD SDI serial digital video signal

Connector

BNC ( IEC169-8 Standard )

SMPTE

270Mbps~2.97Gbps

Signal Amplitude

800mv ±10% ( 75 Ω)

Impedance

75Ω

General Parameters

Power Supply

DC 5-12V

Power Consumption

<2W

Dimension(L*W*H)

141*102*30 mm

Control

DIP Switch

Net Weight

0.3kg

Operating Temperature Range

0-50℃

Storage Temperature Range

-20 to 75℃

Operating Humidity Range

20-70%RH

Storage Humidity Range

0-90%RH

Packing Contents

1.  Main Unit. Broadcast 1x4 3G/HD/SD SDI splitter

2.  1pcs DC 5V Power Supply

3.  1pcs Manual
