Home - Products -SDI Splitter/Repeater

LM-SD104

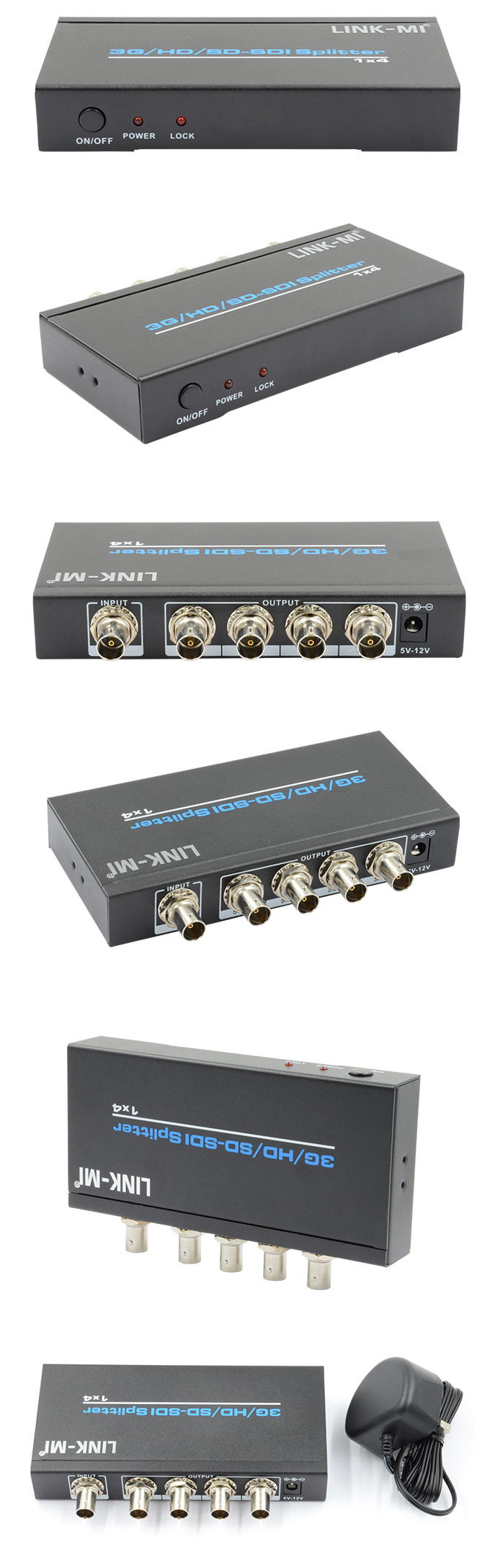

LINK-MI LM-SD104 3G/HD/SD-SDI Splitter 1 x 4

Introduction:

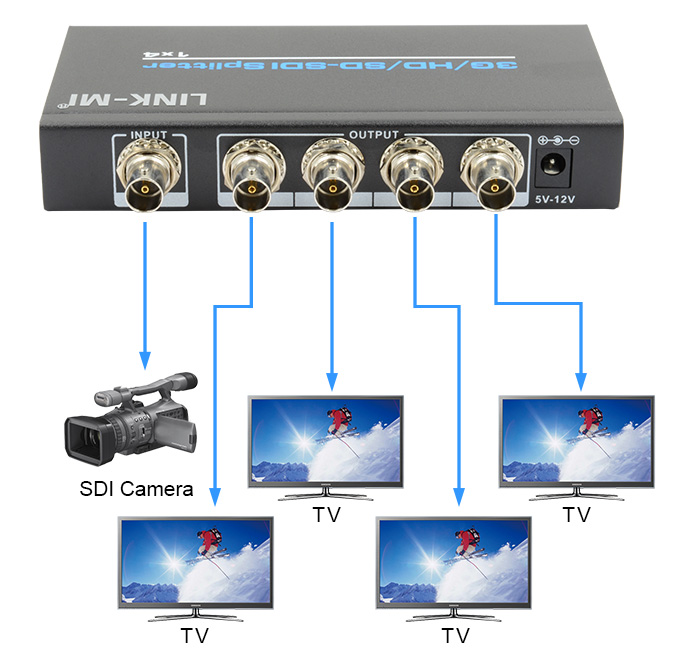

1. 1 SDI input signal split to 4 SDI sink devices.
2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.
3. Built-in cable equilibrium, clock recovery and drive.
4. Supports resolutions up to 1920x1080@60Hz.
5. Supports signal input and output distances of up to 300m for SD signals, 200m
for HD signals and 100m for 3G signals.
6. Supports 5-12V wide voltage input.

Description
