Home - Products -SDI Splitter/Repeater

LM-SS12

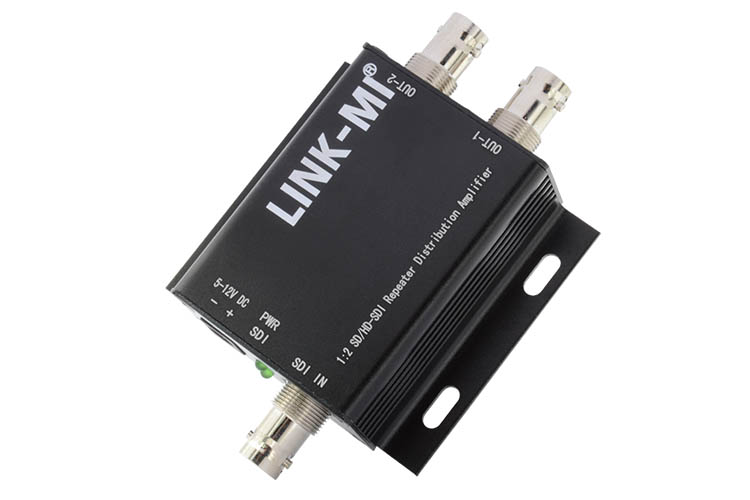

LINK-MI LM-SS12 SD/HD-SDI/3G-SDI Repeaters

Introduction:
1.SDI Standard:3G-SDI, HD-SDI, SD-SDI
2.Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
3.Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
4.Two separately buffered outputs
5.Cable equalization (Beldon 1694A) retiming and signal
6.Re-clocking function capability – unlimited repeater connection

Description
