LINK-MI LM-SH81 HD Video Multiplexers
Introduction: a single display unit simultaneously display multiple high-definition or analog signals

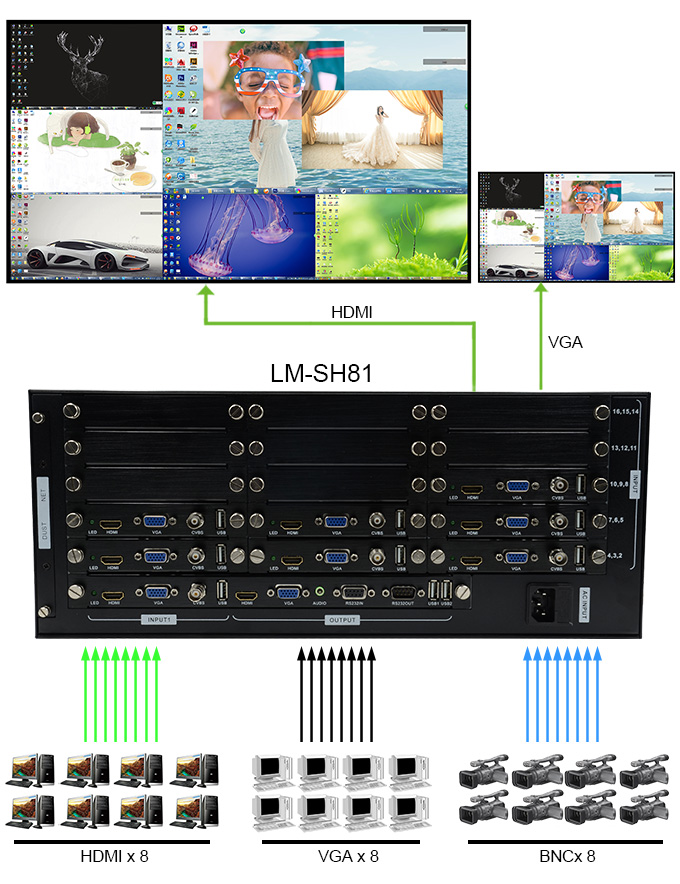

2.8 composite video,8 channel VGA, 8 way HDMI,in total 24 channel signal input
3.1 channel HDMI and 1 VGA output synchronously
4.compatible with various input signal resolution, supports 1920 * 1080
ultra-high resolution output signal PIP, POP, window, overlay, roam, images of any size and location transparency adjustment of image, you can see the bottom image through the above picture
7.widely support 100V ~ 240V AC input, can be common to any country worldwide

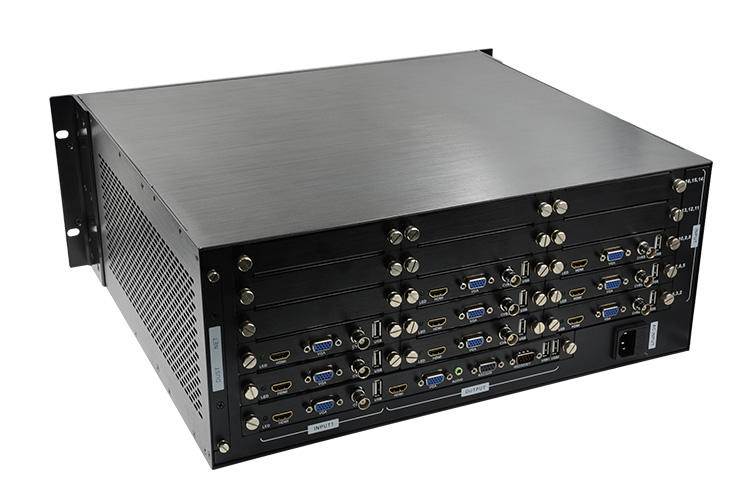

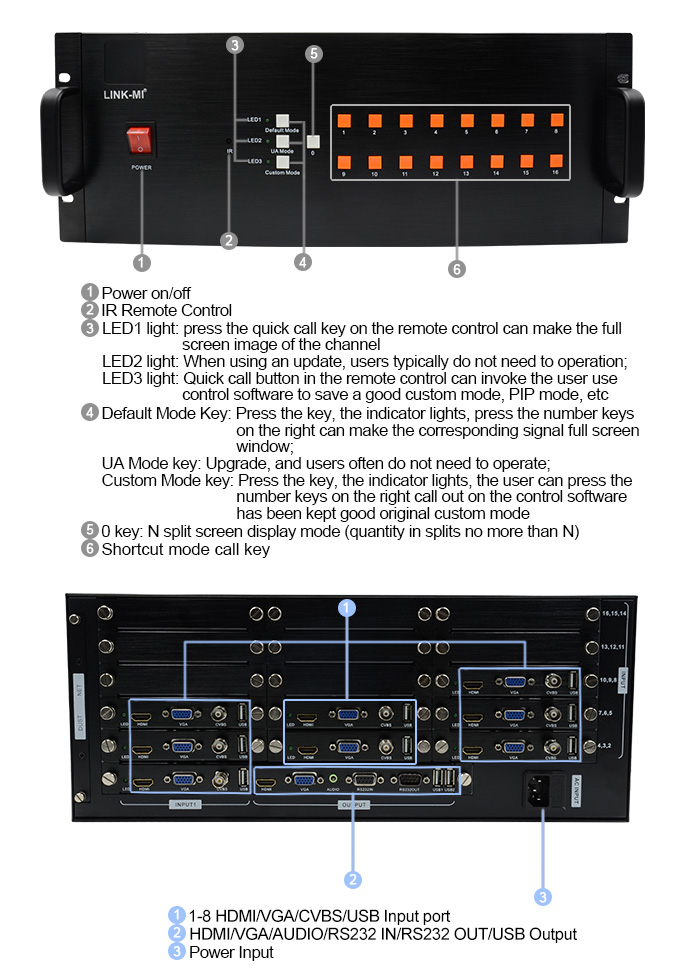

8.standard 4U wiredrawing chassis, directly on standard cabinet chassis buttons, IR remote control, RS-232 serial control and in control
10.High-quality HD video multiplexers tailored Designed for video projects
