LM-S41F

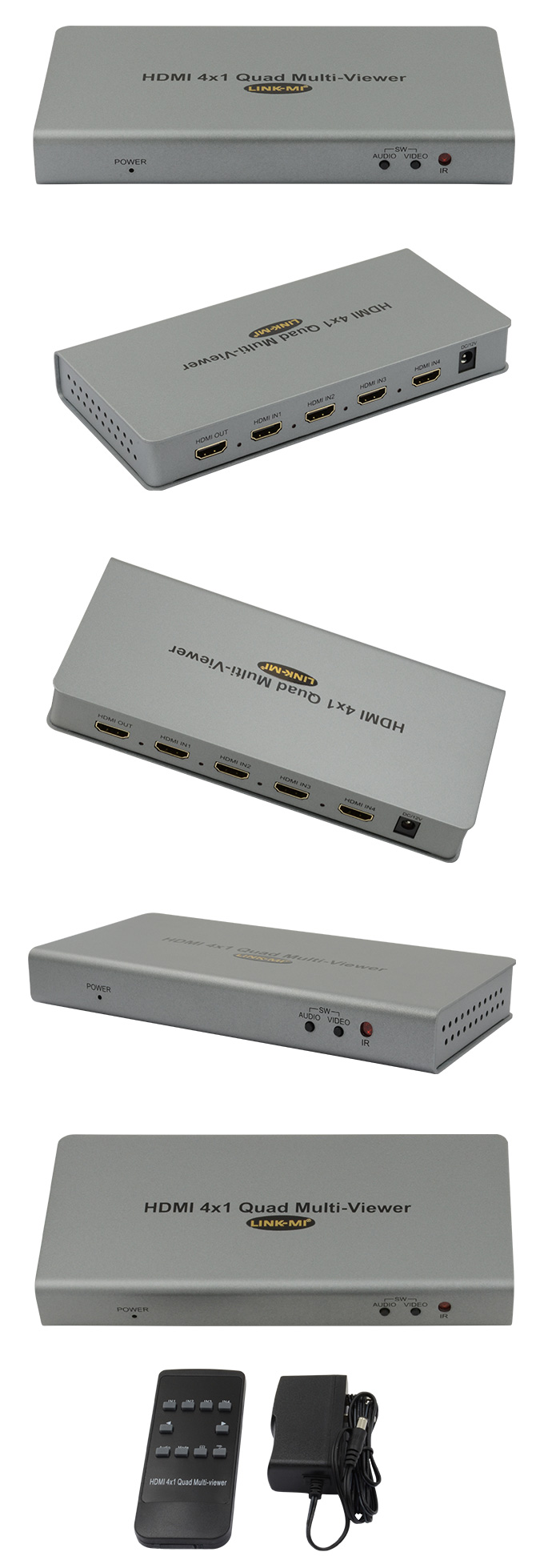

LINK-MI LM-S41F HDMI 4x1 Quad Multi-viewer

Introduction:
1.Support 4 HDMI input, 1 HDMI output
2.Support 4 channels HDMI signal screen segmentation
3.Support 4 channels HDMI signal seamless switching
4.Support highest resolution up to 1080P/60Hz
5.Support IR control
6.Compatible HDMI1.3a, HDCP1.2, input compatible DVI1.0 version
7.Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on
8.Support audio output format: PCM2
9.Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres
10.DC12V/2A power adapter
11.Net weight: 350g
12.Dimension (L x W x H): 19cm*9cm*2.3cm

Description
