LM-SH161

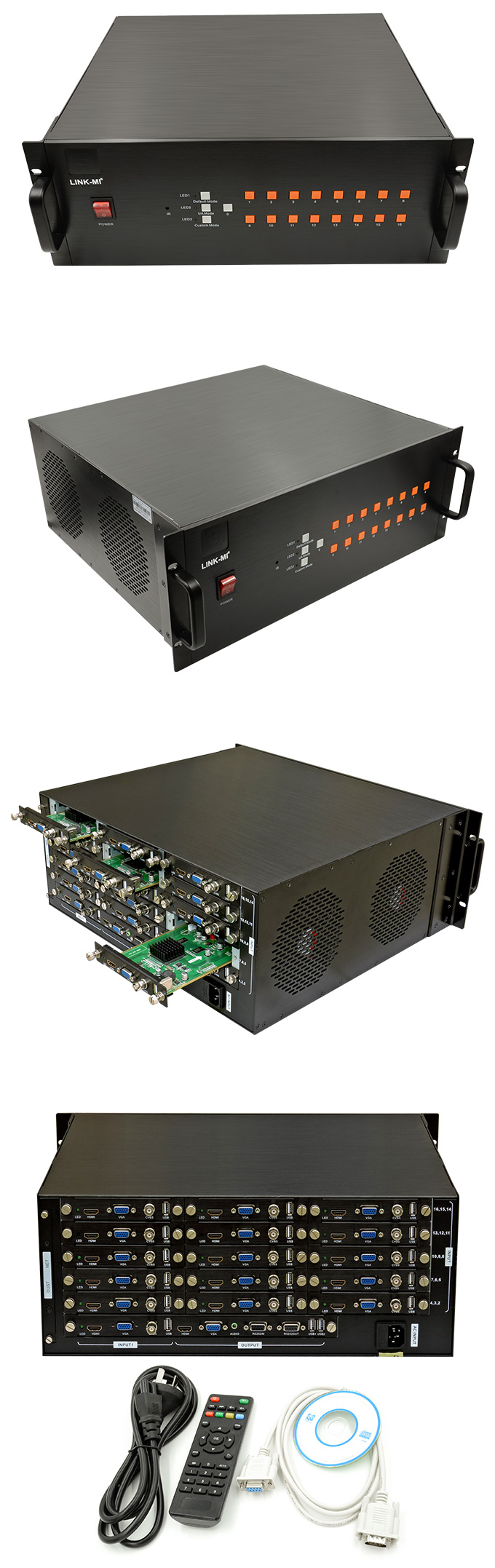

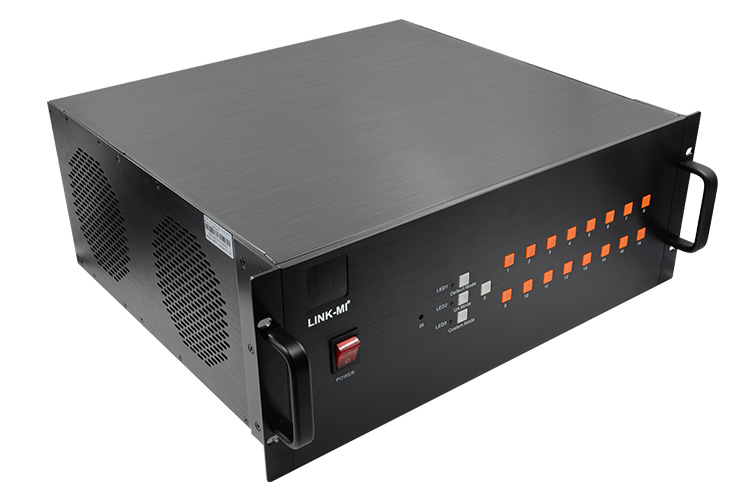

LINK-MI LM-SH161 HD Video Multiplexers

Introduction:
1.support a single display unit simultaneously display multiple high-definition
or analog signals;

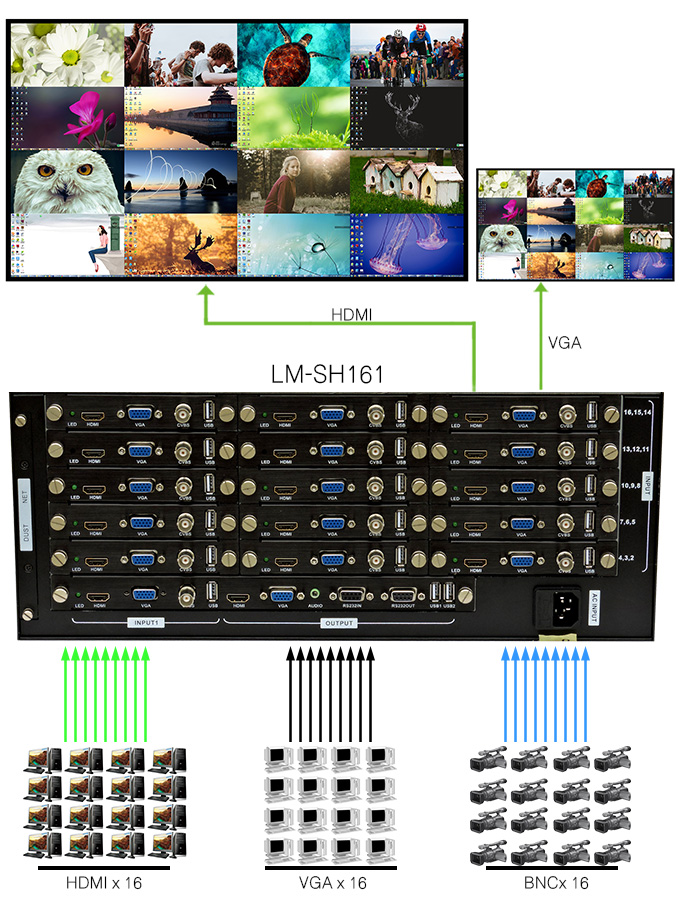

2.16 composite video,16-channel VGA, 16-way HDMI,in total 48-channel signal
input;
3.1 channel HDMI and 1 VGA output synchronously;
4.compatible with various input signal resolution, supports 1920 * 1080
ultra-high resolution output signal;
5.support PIP, POP, window, overlay, roam, images of any size and location ;
6.support transparency adjustment of image, you can see the bottom image through
the above picture;
7.widely support 100V ~ 240V AC input, can be common to any country worldwide;
8.standard 4U wiredrawing chassis, directly on standard cabinet;

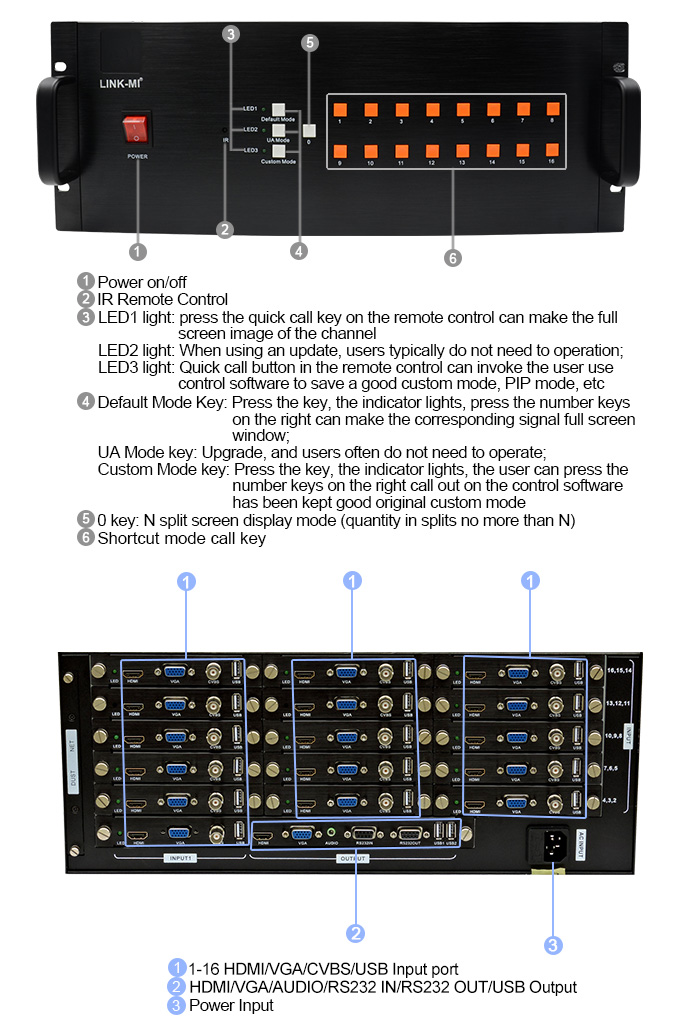

9.support chassis buttons, IR remote control, RS-232 serial control and in
control;
10.High-quality HD video multiplexers tailored Designed for video projects;

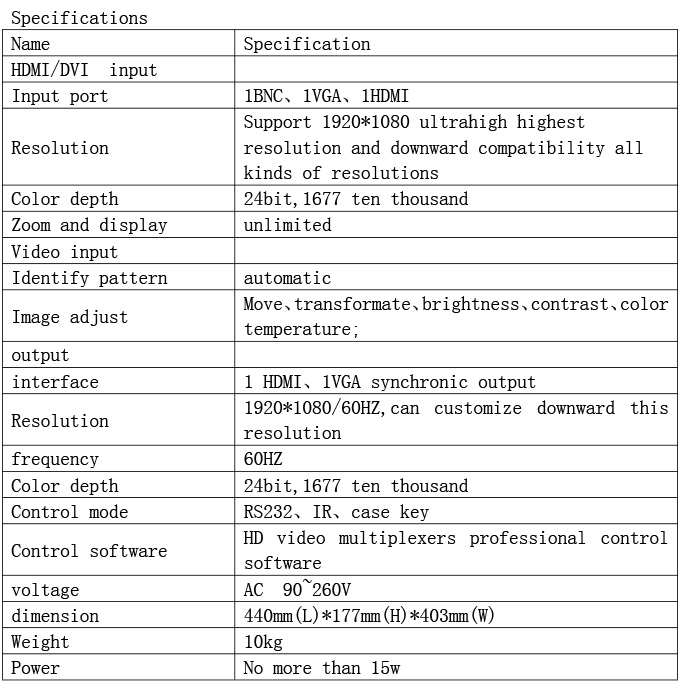

Description
