LM-WX1000

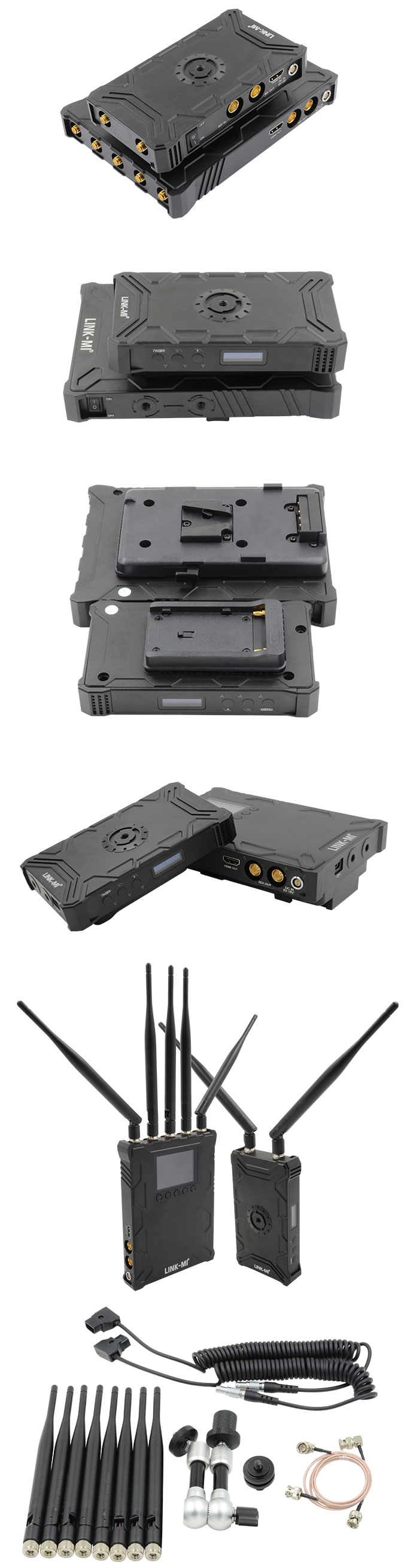

LINK-MI LM-WX1000 HDMI and SD/HD/3G-SDI wireless extender 1000M 5GHz

Introduction:
1.Uncompressed 3G/HD/SD-SDI and HDMI, up to 1080p 50/60
2.Less than 1 frame latency
There is no discernible video delay and you can use it as real time on-location monitoring.
3.Operating range: 3280FT (line of sight), the transmission distance may be different, depend on surroundings, radio wave conditions, buildings block, etc.
4.Operating band: 5GHz ISM band
5.Multicast support
Support one transmitter to multi receivers. User can set channel to pair both the transmitter and receivers.
6.AES 128 encryption
7.OLED shown in work status
8.All-Metal Shell
9.Simple connection
The wireless system is plug-and-play designed, without any software configuration.

Description
