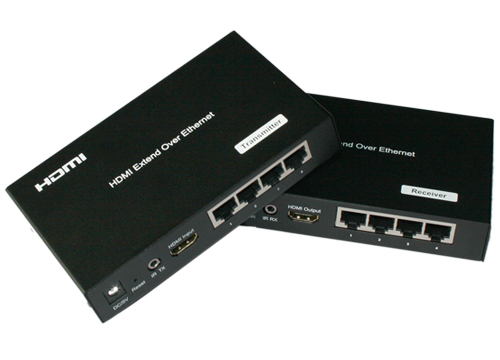

LINK-MI LM-EX23 HDMI Extender Over IP 120m
1.Flexible and scalable HDMI 1080p High Quality Video Broadcasting with Gigabit Ethernet LAN.
2.Extends 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable.
3.Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading.
4.Support Point-to-Point, Point-to-Many network configuration.
5.Support unlimited cascading.
6.Extend, split, and daisy-chain HDMI, IR using CAT-5e cables
7.HDCP compliant




 Model No.









 Extend HDMI Signal up to 120m over cat5e/6 cable

 Operating Temperature Range

 -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )

 Operating Humidity Range

 5 to 90%RH ( No Condensation )

 Video Format

 DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p

 Video Output


 Audio Sampling Rate

 32KHz, 44.1KHz and 48KHz

 Transmission Distance

 1080p@60Hz 120m ( Maximum ) Over Single Cat5e/6/24AWG/Solid

 Power Supply

 DC 5V 2A

 Power Consumption

 5 Watts ( Max. )

 Dimension ( L*W*H )


 IR Frequency Range


 Net Weight

 TX: 340g; RX: 340g

 TX & RX

Default IP Address:;

MAC Address: 00:0b:78:00:60:01

Default IP Address:;

MAC Address: 00:0b:78:00:60:02

Packing Contents

1. Main Unit. HDMI Extender Transmitter & Receiver

2. 2pcs DC 5V 2A Power Adapter

3. IR-TX Cable & IR-RX Cable

4. Operating Instructions
