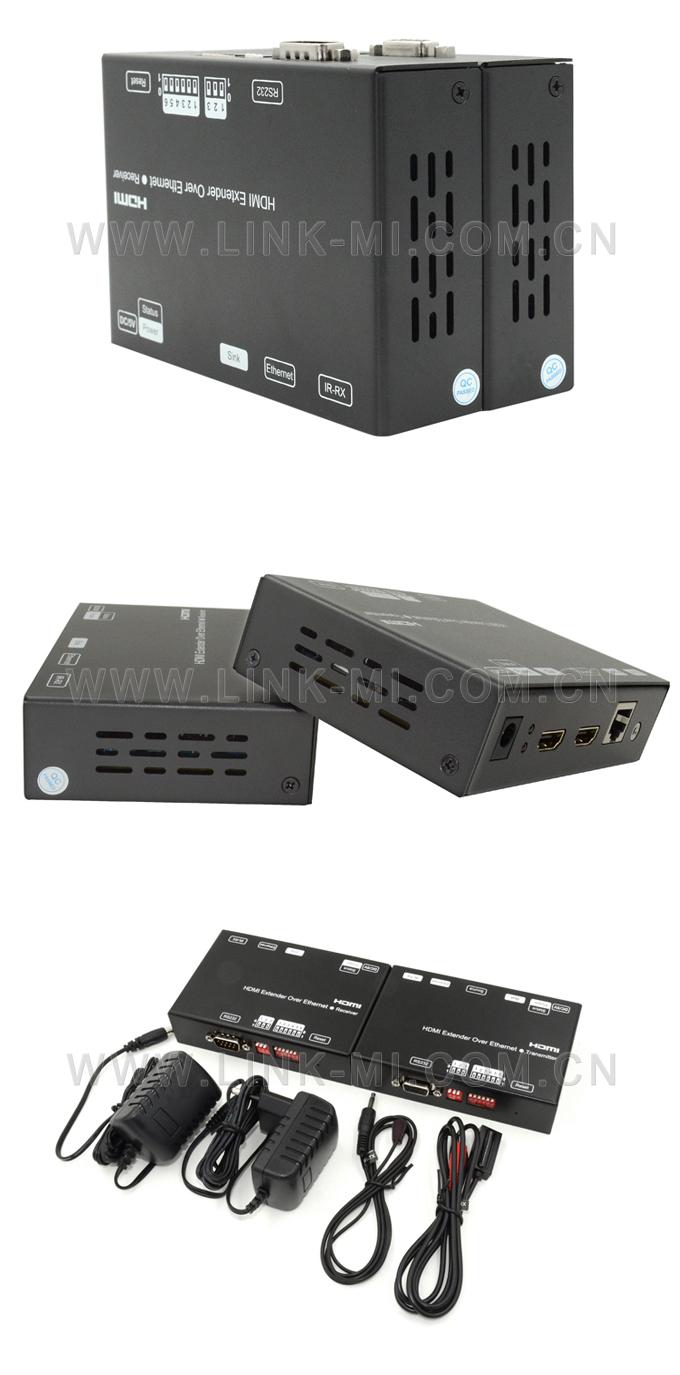

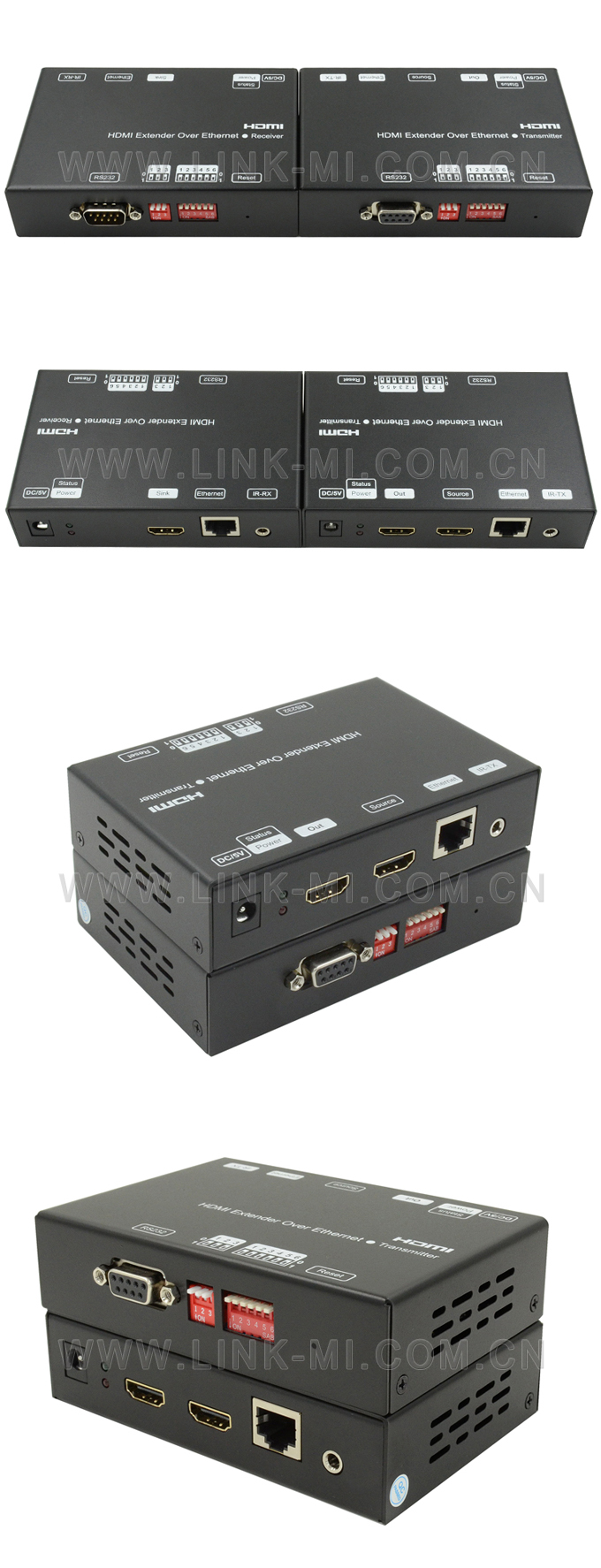

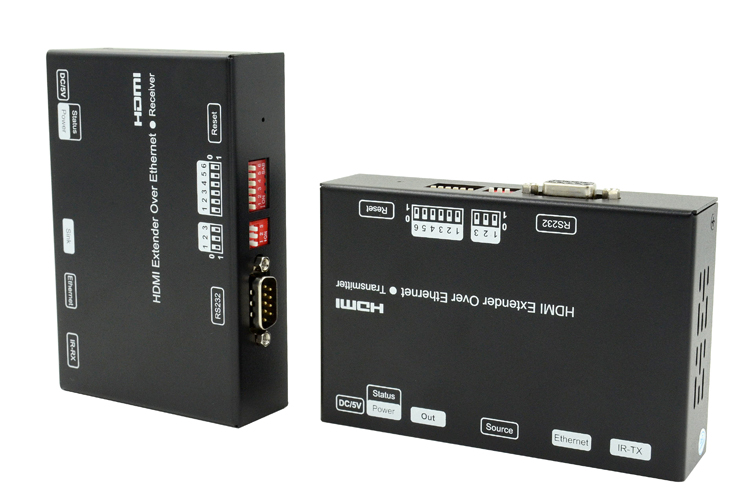

LINK-MI LM-EX24 120m HDMI Extender over IP with H.264 encoder
1.Use H.264 as compression type
2.Support resolution up to 1080p @ 60HZ, data transmission speed is 2.25Gbps
3. Support LPCM audio format, sample rate is 48 KHZ
4. Comply with TCP/IP protocol for transmission, streaming bit rate is up to 15Mbps.
5. Compliant HDCP
6. Support RS232 pass through
7.Support Wide-band IR (38k ~ 56khz)

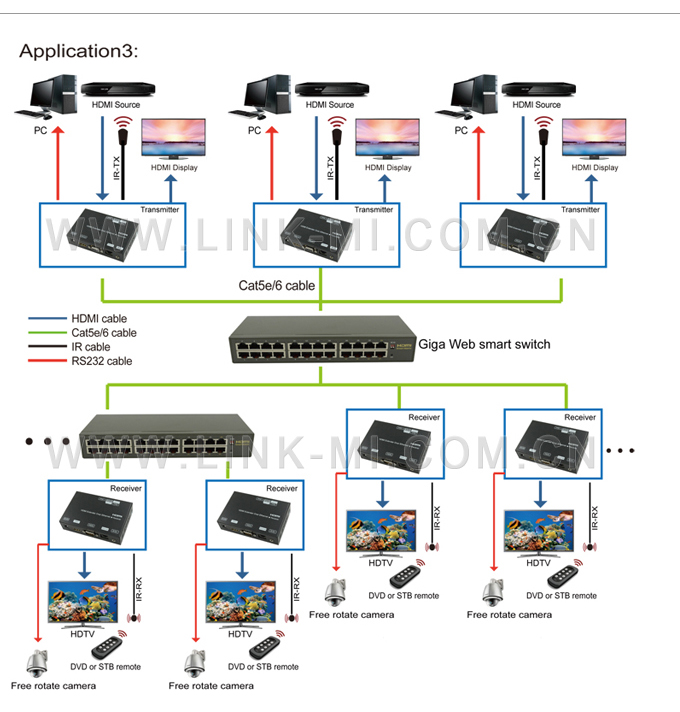

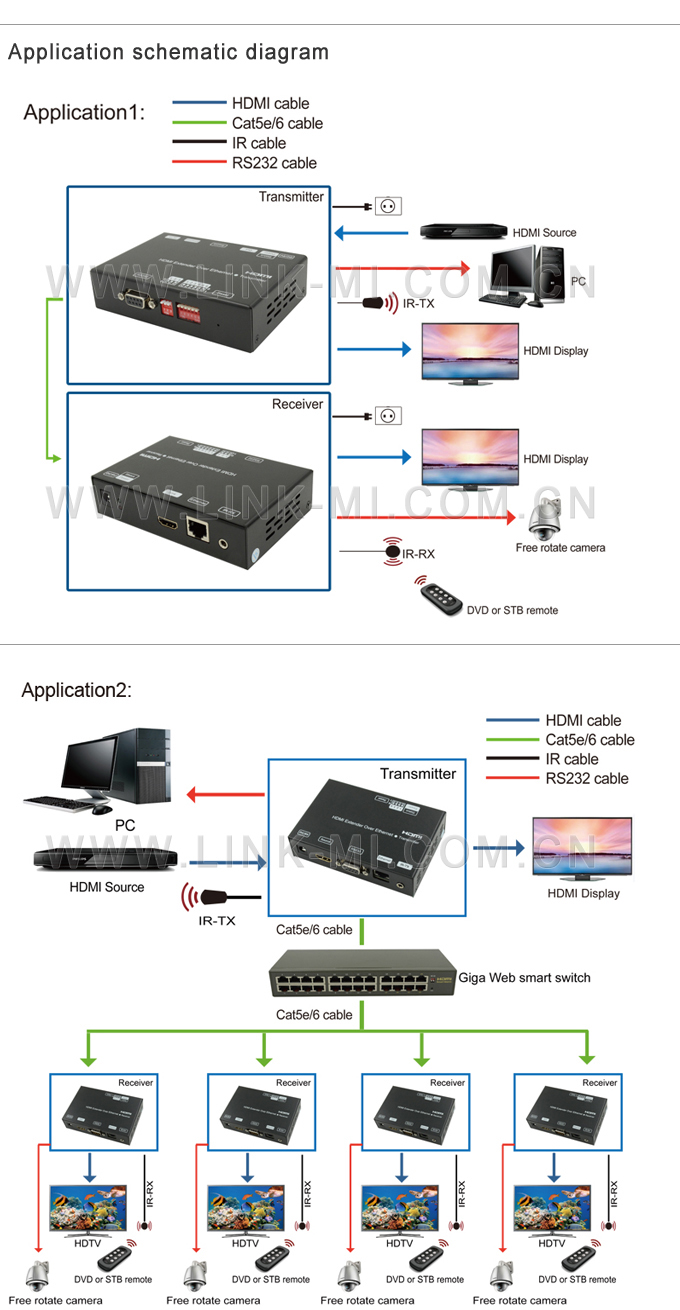

8. Support point to point, point to many, many to point, many to many broadcasting network configuration
9. Support DHCP, switch assign IP for the Transmitter and Receiver automatically
10.With 3 Bit DIP to choose baud rate
11.With 6 Bit DIP to manage group ID
12. Support DIP to switch the sources
13. With HDMI output for local display on Transmitter
14. DC 5V 1A power supply, power consumption less than 3 W
