Home - Products -HDMI Extender Over IP

HDMI Extender over IP Extender With LED, Remote, RS232
1. Using H.264 compression encoding, support resolution up to 1080p@60hz
2. Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
3. With IR Remote to choose the source, with LED to show the Group ID
4. Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
5. Support LPCM audio format
6. Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
7. Wide-band IR pass through to control the source (38khz to 56khz)
8. By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate

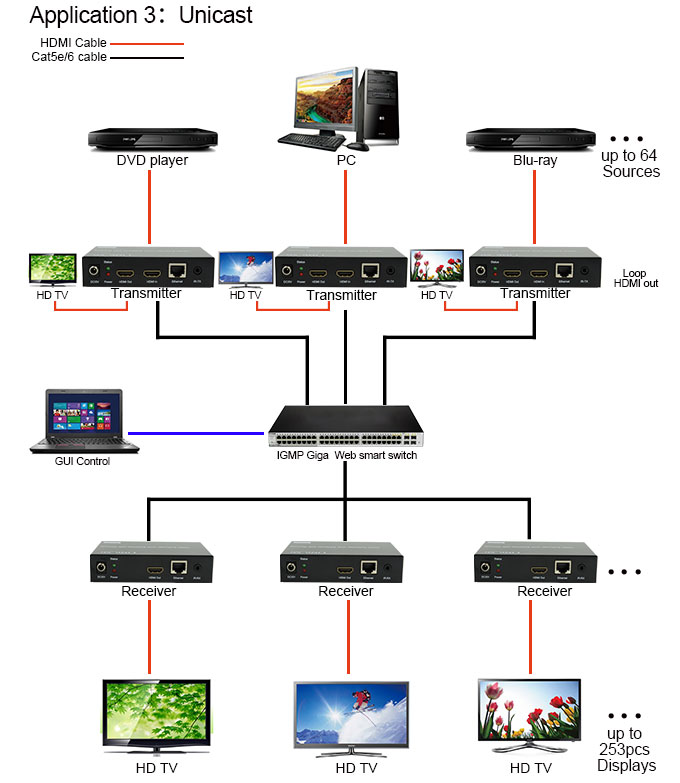

9. Support one to one, one to many, many to one, many to many modes, with large cascade
10. HDCP Compliant
11. Support PC tool control
12. DC 5V 1A power supply
