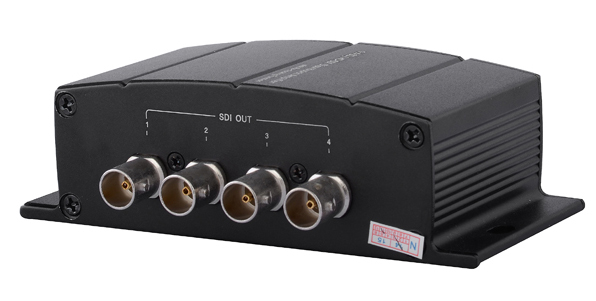

LINK-MI LM-SS14 3G-SDI, HD-SDI, SD-SDI 1x4 Splitter HD SDI Repeater
1. One Signal distribute to four SDI signal out.
2. Support SD-SDI, HD-SDI and 3G-SDI Video Format.
3. SDI Supports1080P/1080I/720P/576I/ 480I Video Resolution.
4. Support SDI transmission Speed: SD-SDI:270MbPs、HD-SDI:1.485GbPs and 3G-SDI: 2.97GbPs.
5. Supported Max Cable Length(SYV-75-5):SD supports up to 400m,HD supports up to 200m, 3G supports up to 80~100m(Note: The cable
length will depend on the cable spec)
6. Support deep color 8bit, 10bit, 12bit
7. Support up to 3G-SDI
8. Audio and Video Output Simultaneously
9. Support Clock Recovery
10. No Any Drive Need, Support Hot-Plug, Plug and Play
11. Wide voltage input, It can support DC 5V~ 12V input


Packing Contents

1. Main Unit. SD/HD/3G SDI Repeater 1*4 SDI Splitter

2. 1pcs Power Adapter

3. 1pcs User Manual
