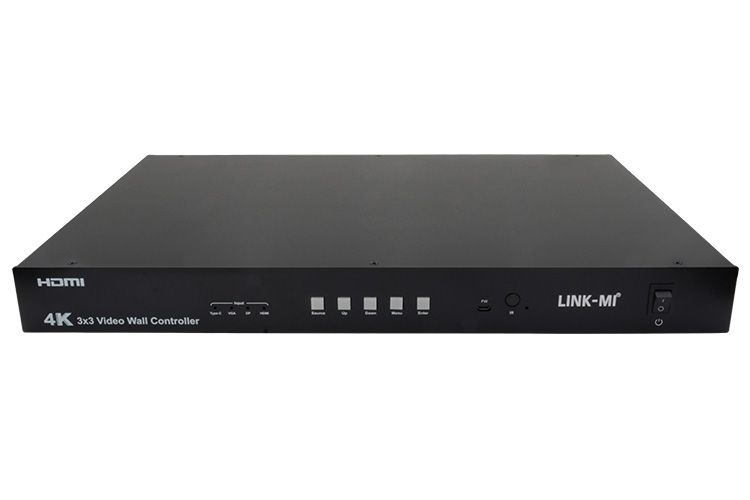

LINK-MI LM-VW03 HDMI 3X3 4K Video Wall Controller with USB TYPE-C /VGA/ DP/ HDMI Inputs
1. Support USB TYPE-C /VGA/DP / HDMI input.

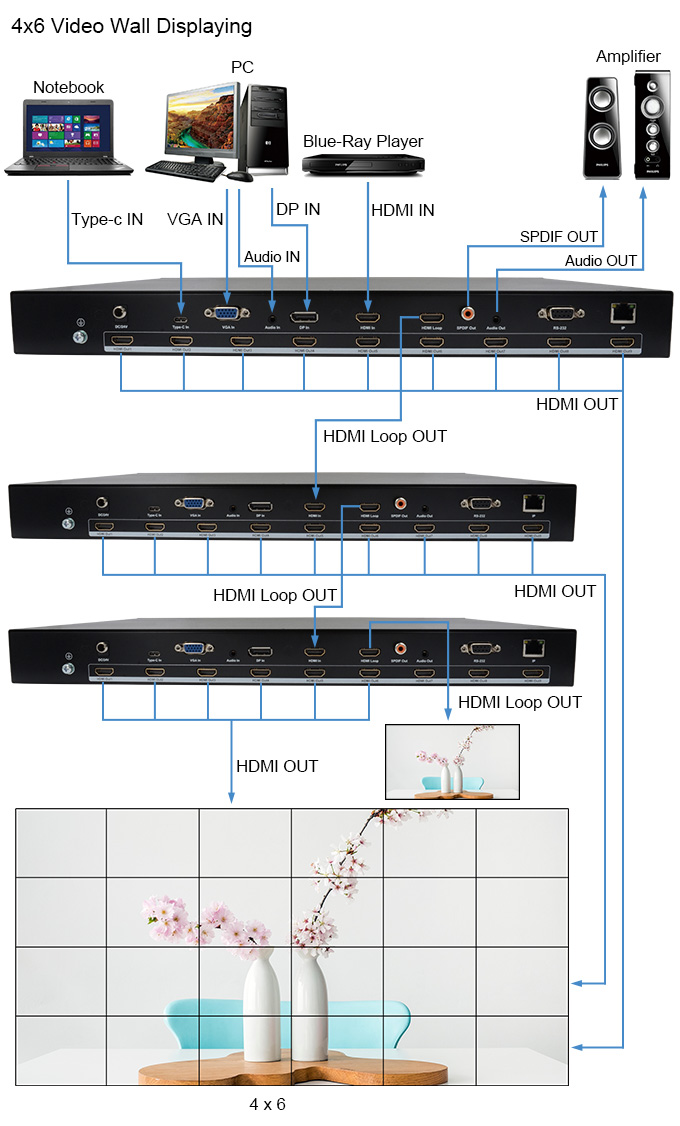

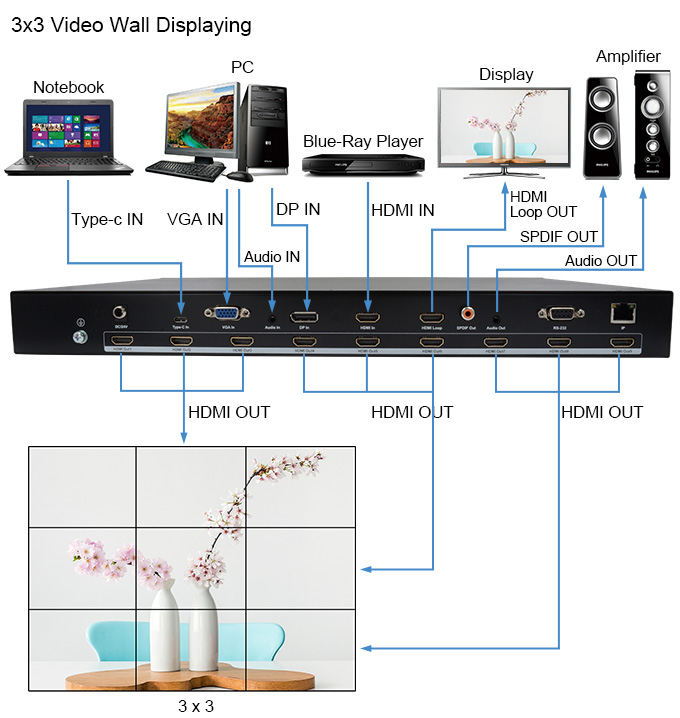

2. Support 4K 3x3 video wall, cascading to create 3x4,4x5, 5X6,and max 10x10 video wall.
3. Support output image 180° rotation.
4. Support highest resolution up to 4K30HZ 4:4:4.
5. Support EDID management:Two default EDID: 4K30HZ, 1080P.
6. Support HDCP2.2/1.4.
7. Support panel button; IR remote; RS232 command and Web GUI to control.
8. Support SPDIF andAnalog audio extraction
9. Support third-party platform control via RS232 port or Lan.
10. 1U rack design ,easy installment.
11. DC 24V 2Apower supply.
12. Unit size:L438x W274x H44 mm.
