LINK-MI LM-TV16P 4x4 HDMI Video Wall Controller Support 4K@60Hz, PIP

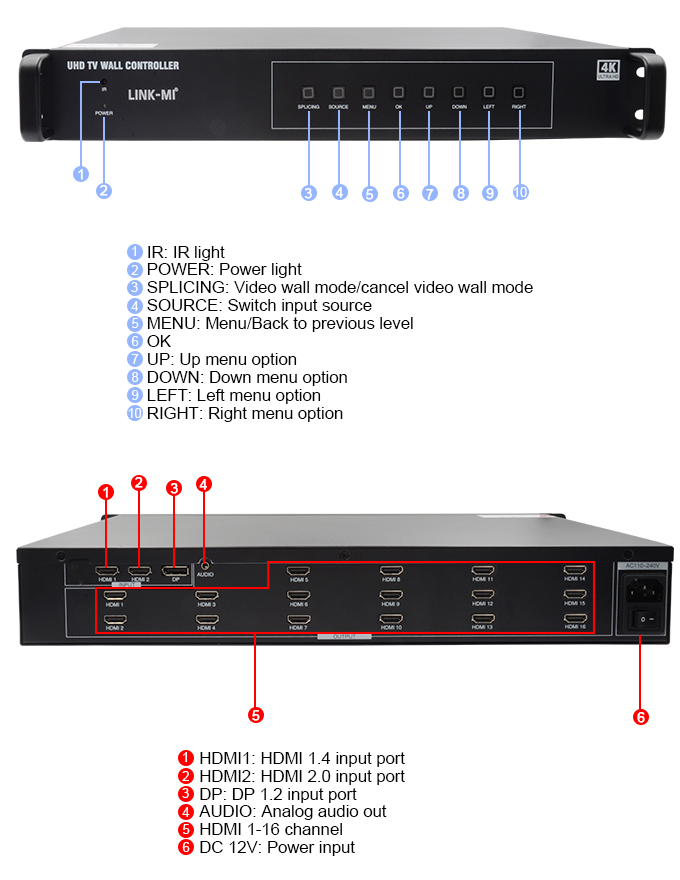

1. 4x4 video wall controller comes with 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1x
DP in; 16x HDMI out.
2. Max resolution up to 4K@60Hz 4:4:4, HDCP 2.2, DP 1.2 max 4K@60Hz.
3. Easy to set-up and control,support control via front buttons and remote.
4. Support image rotation 90°, 180°, 270° and Mirror left and right, flip up and
5. Support 3.5mm analog audio out.
6. Support automatically adjust border function and crop image function, Display without black edges.
7. Support roaming window and support input of the splicer can be resize and
positioned at any position.
8. Support intelligent temperature control protection technology, making the
product's heat dissipation performance more stable, reliable and durable.
9. Silent smart fan, no noise at work.
