LINK-MI LM-WHS400 400M Wireless 3G SDI/HDMI Extender
1. HDMI 1.3 compliant
2. Support SMPTE 425M , SMPTE 424M, SMPTE 292M Standard
3. Support HDMI and 3G-SDI inputs and outputs

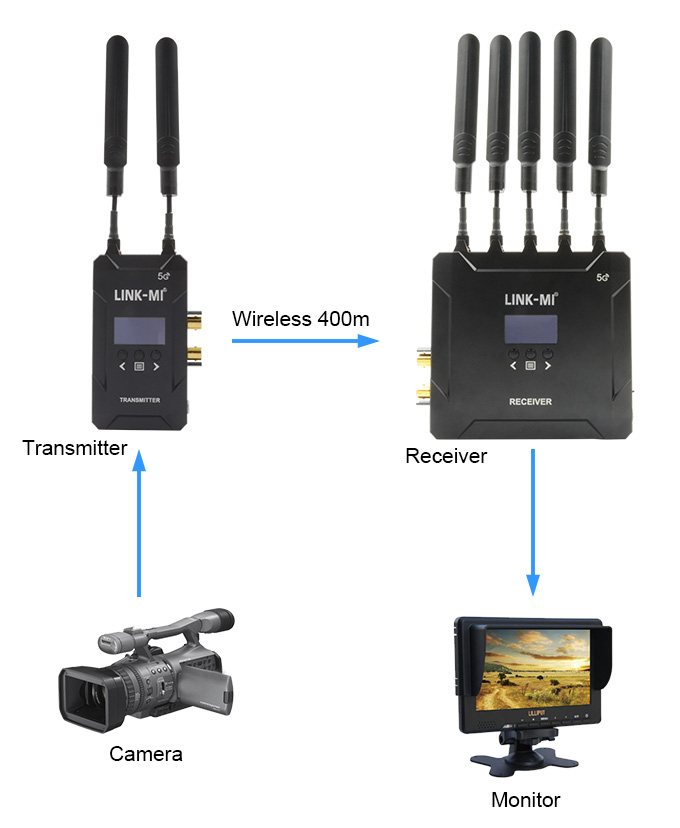

4. Support point to point, and point-to-multiple network topology
5. Support resolutions up to 1080P@60Hz, zero delay and no compression
6. Support 5GHz ISM frequency band, maximum 10 frequency channels selected by buttons with OLED display
7. Maximum transmission range is 1300ft(400 meters)
8. Support display DC power status, video status and receiver RSSI by OLED
9. Support Wide range power supply,range from 7V to 36V
10. Support Optional Sony F970,V-mount and G-mount, battery buckle, convenient for field battery install and replacement
11. Support ±8 KV ESD protection level (HBM, Contact discharge)
12. Industrial case, stable, reliable and convenient
